Embedded Computing

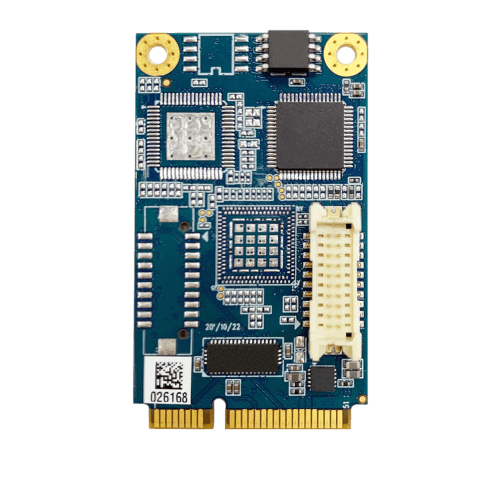

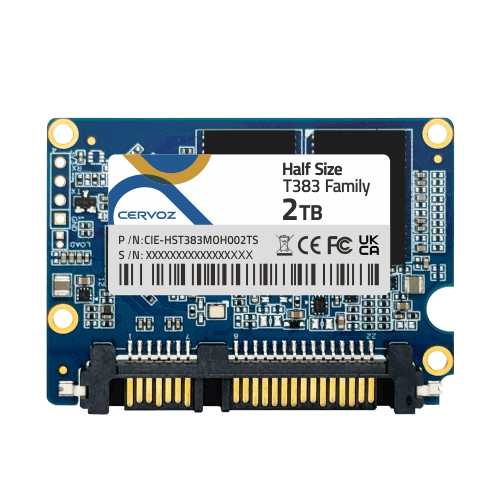

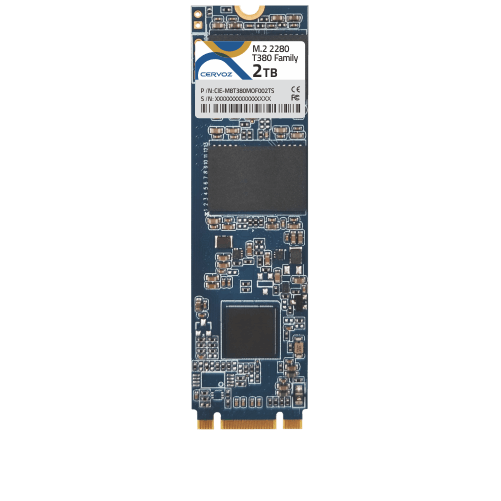

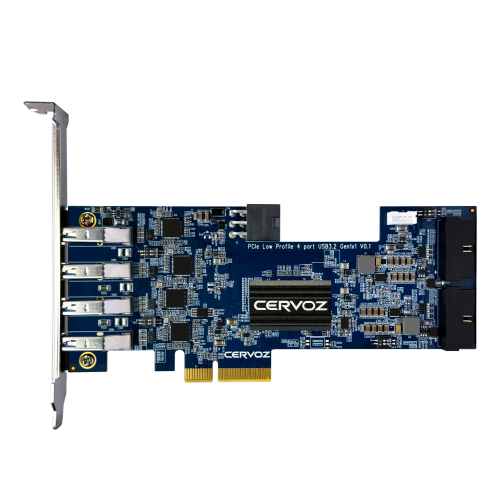

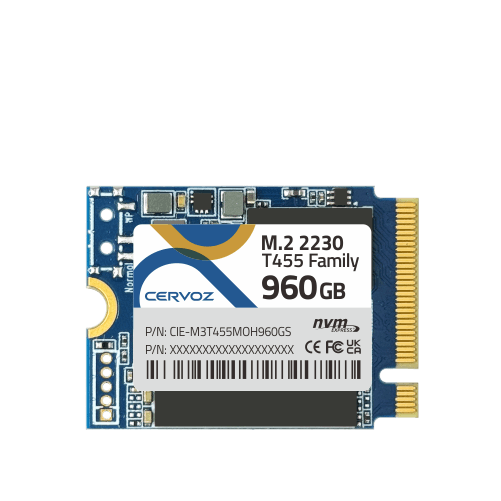

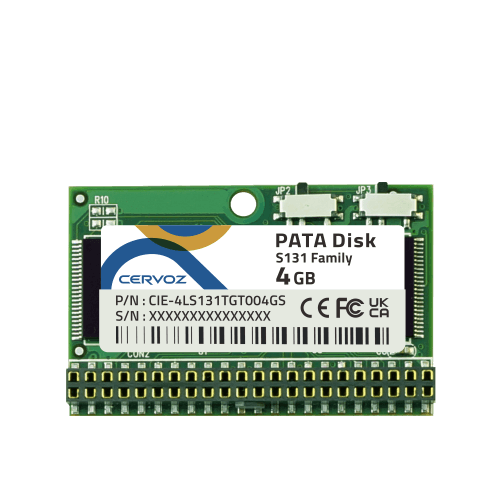

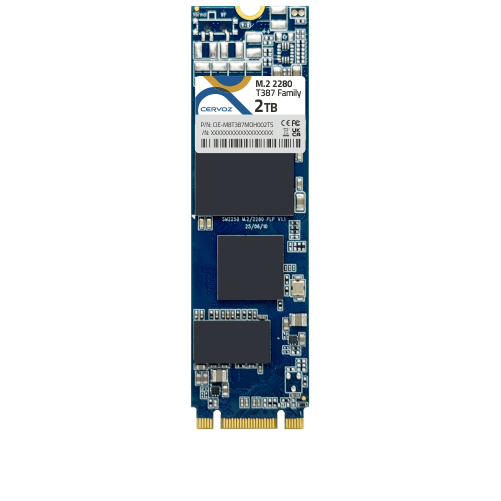

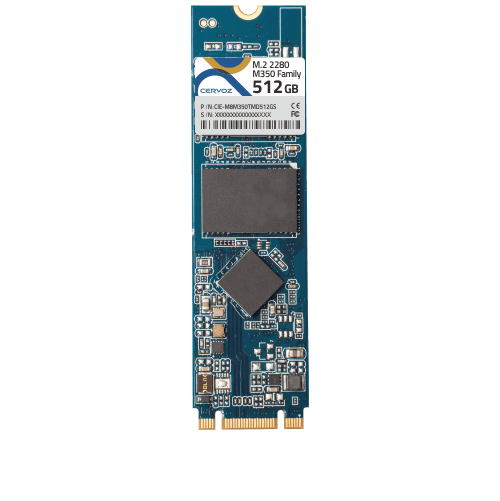

Choose you item

Challenges & Requirements

Space is the biggest concern for any embedded computer. The computer needs to be small enough to fit inside its corresponding application device but not too small that it has to forgo important components and thus compromise performance potential. A pressing need for embedded computing is more variety and versatility in form factors, performance and functions of these small-sized storage and memory products.

Solutions

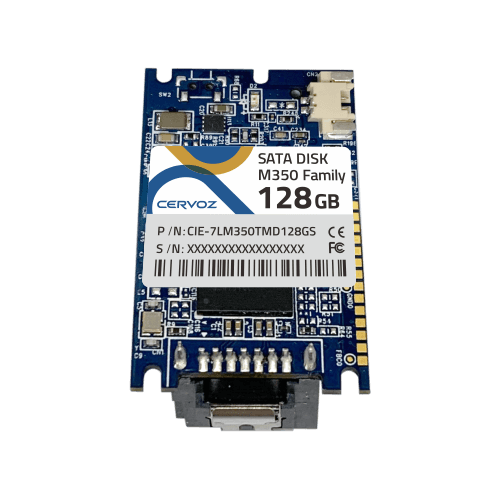

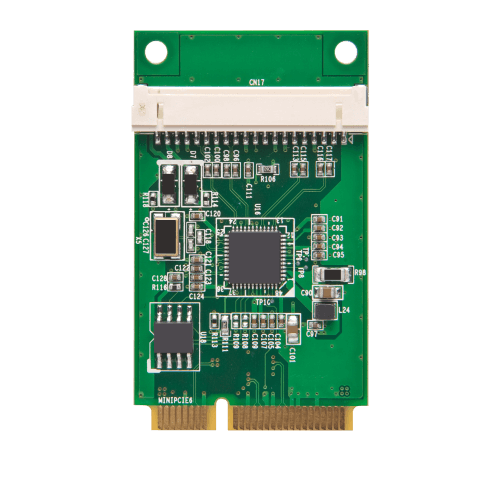

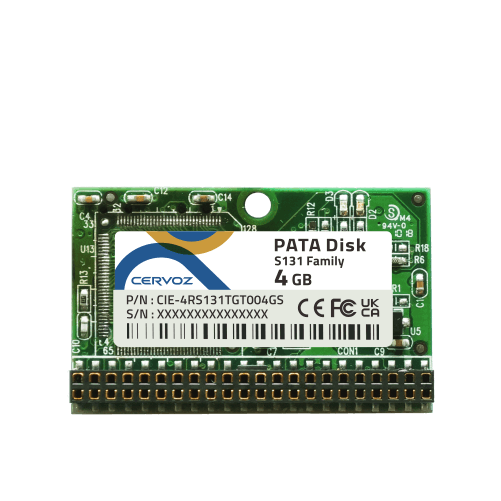

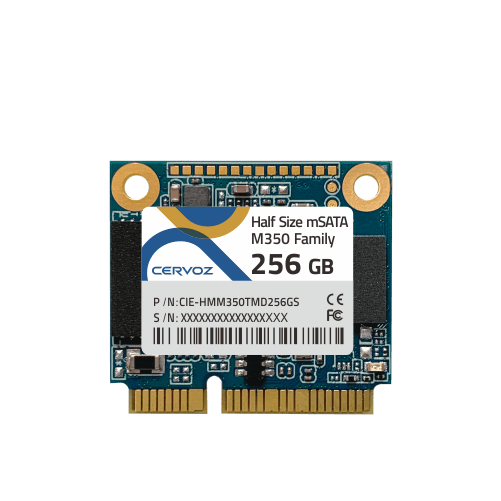

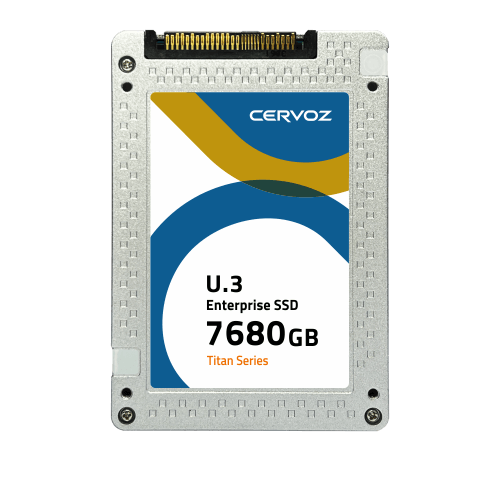

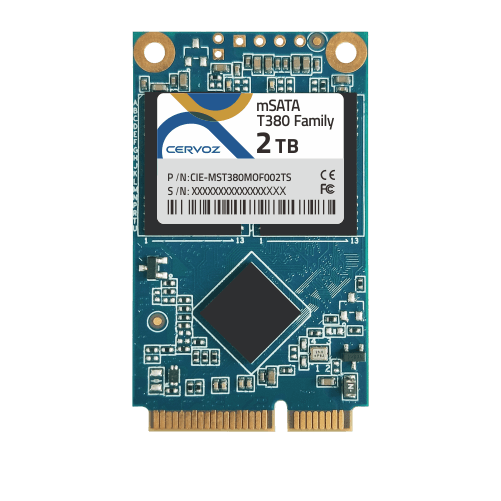

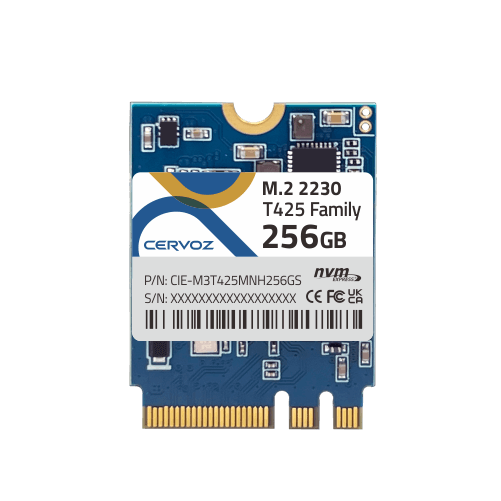

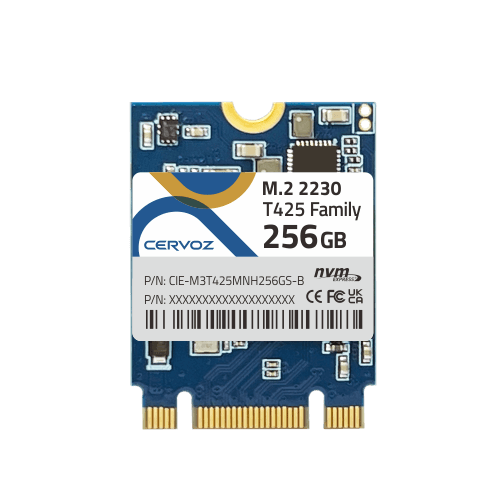

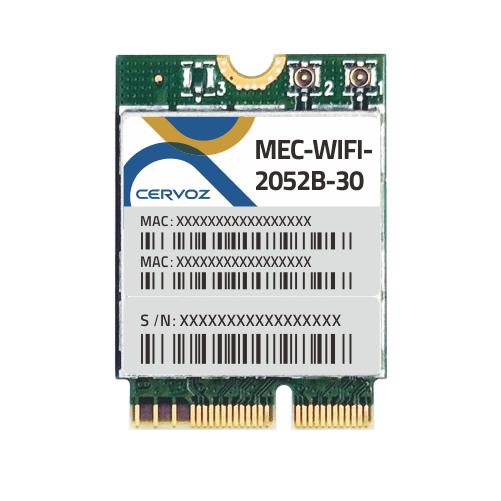

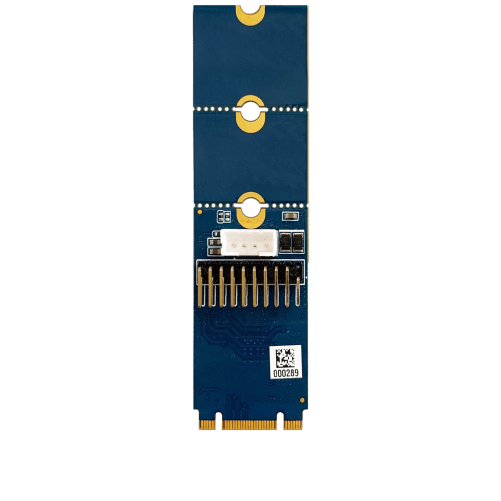

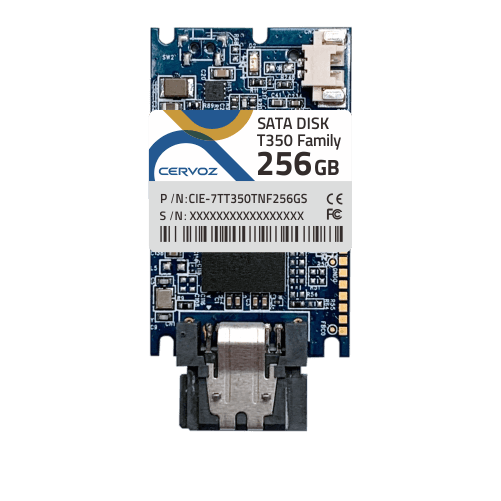

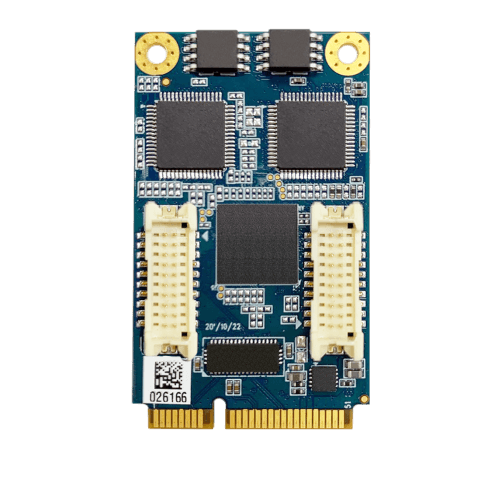

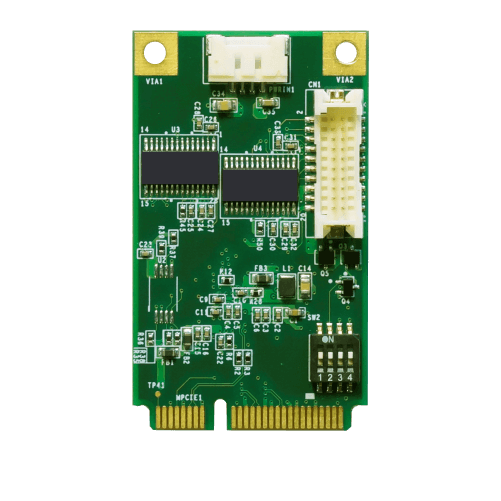

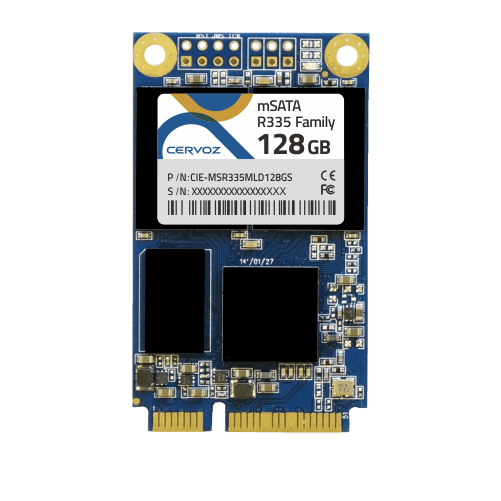

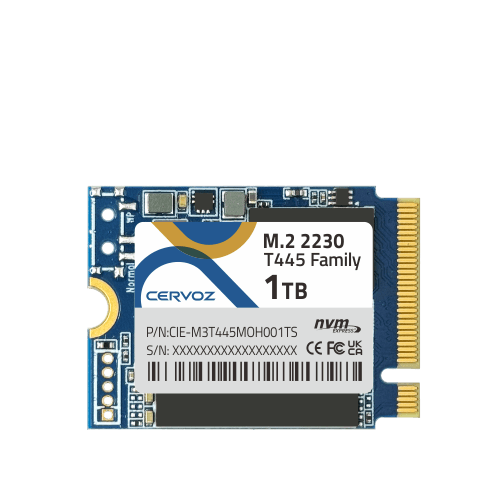

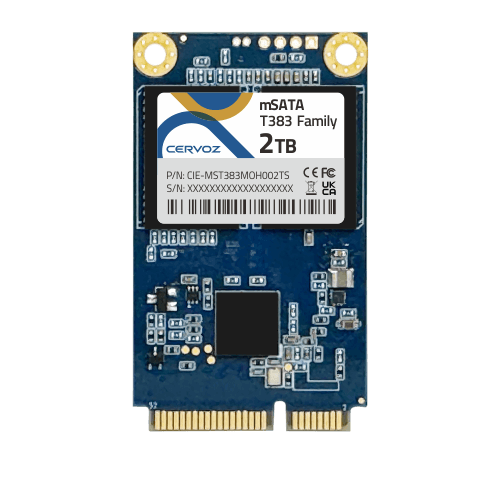

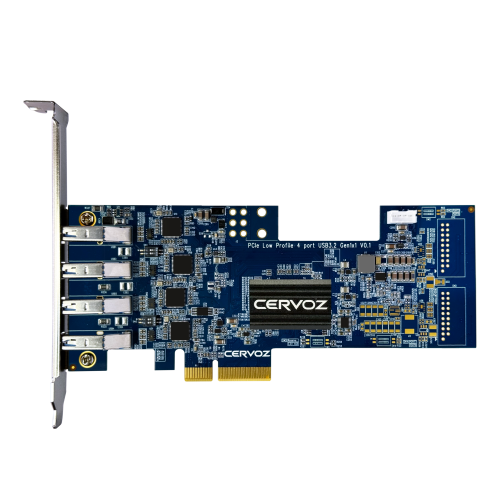

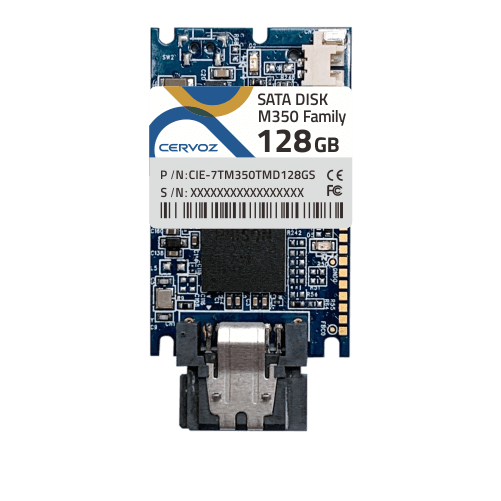

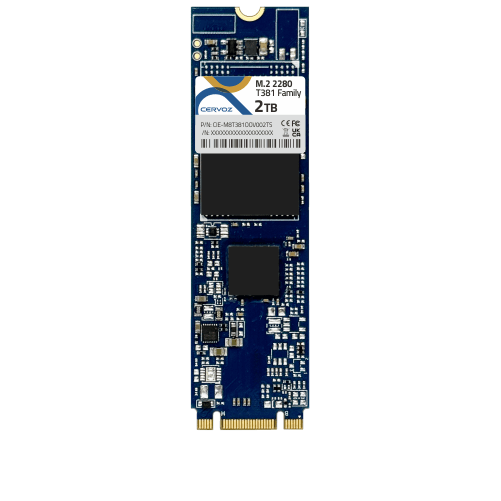

Cervoz’s Industrial Memory Cards and Industrial Embedded Modules come in a comprehensive range of small size form factors and interfaces, ideal for embedded computer applications. Products are available in SLC, RO-MLC, MLC and TLC technologies. Customers can select the performance level of their choice, pick a product and install it inside the embedded computers.

Featured Technologies

Small Form Factors

A hardware design that minimizes the space each component takes up in order to deliver a small module for application devices with space constraints.

VLP (Very Low Profile) DRAM

A space-saving module that is 40% smaller than the standard module. It is compatible with 1U devices or any embedded PCs with space-limited applications, and is helpful in improving the system's heat dispersal capabilities.

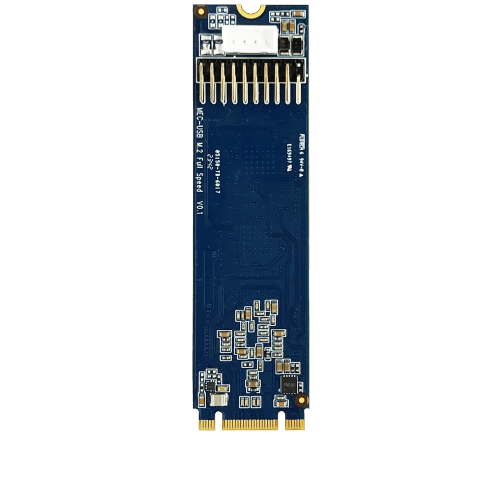

MECFIX (Versatile Mounting)

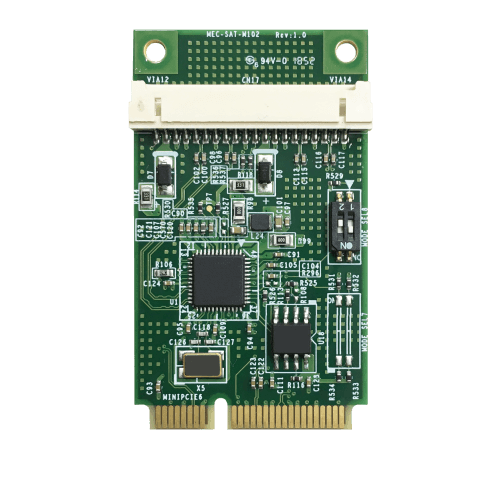

A Cervoz-designed versatile mounting mechanism that facilitates flexible plugging and connecting of modules and components onto the MEC daughterboard.

Understanding USB-C in Industrial Systems: Data, DisplayPort Alt Mode, and Power Delivery

USB Type-C has become a common connector for embedded computers, industrial displays, cameras, storage devices, and other peripherals. Its compact and reversible design makes USB-C particularly useful in systems where installation space and connector accessibility are limited. However, the USB-C connector does not define every function that a port supports. Some USB-C ports support only USB data transfer. Some USB-C ports also support DisplayPort Alternate Mode for video output. Other USB-C ports support Power Delivery for connected devices. A full-featured USB-C port may combine data, video, and power through a single connection. System designers must therefore evaluate the complete interface specification instead of relying on the connector type alone. What Is USB-C? USB-C, also called USB Type-C, defines a compact and reversible connector. Unlike USB Type-A, the USB-C connector can be inserted in either orientation. USB-C can potentially support: USB data transfer DisplayPort video output USB Power Delivery Audio transmission A combination of data, video, and power The physical connector does not guarantee that all these functions are available. The system motherboard, USB controller, display source, power circuit, firmware, cable, and connected device must all support the intended configuration. Two embedded computers may use physically identical USB-C connectors while providing completely different capabilities. Why Not All USB-C Ports Are the Same USB-C describes the connector, but the underlying protocol determines what the connection can do. A USB-C port may provide only USB 2.0 data. Another USB-C port may support higher-speed USB data without video output. A third USB-C port may support USB data, DP(DisplayPort) Alt Mode, and Power Delivery. This variation can create confusion during system integration. A USB-C peripheral may fit the port physically but still fail to provide the expected data, video, or power function. System designers should verify each USB-C capability separately during platform selection and validation. Not All USB-C Ports Are the Same (USB-C defines the connector, while the system design determines which data, video, and power functions are available.) Three Key Functions of USB-C USB data, DP(DisplayPort) Alt Mode, and Power Delivery are separate capabilities. A USB-C port may support one, two, or all three functions. One USB-C Connection. Three Functions. Actual capability depends on the complete system configuration. (A full-function USB-C implementation can combine data, DisplayPort video, and power through one connection.) USB Data Transfer The USB interface transfers data between the host and connected peripherals. Industrial systems may use USB to connect cameras, storage devices, touch controllers, scanners, diagnostic tools, and other equipment. The actual transfer rate depends on several components: USB controller Host interface USB specification Cable capability Connected peripheral The USB-C connector alone does not indicate the supported data rate. System specifications should clearly identify whether the interface supports USB 2.0, USB 3.2, USB4, or another USB standard. DisplayPort Alternate Mode DisplayPort Alternate Mode, commonly called DP Alt Mode, allows a USB-C connection to carry DisplayPort video signals. USB-C includes multiple high-speed signal lanes. DP Alt Mode assigns some or all of these lanes to DisplayPort transmission. This configuration allows a compatible USB-C port to connect to an industrial monitor, touch display, control panel, or other display device without requiring a separate full-size DisplayPort connector. A DP Alt Mode connection may also retain USB data and power functions. The available combination depends on the host design, lane configuration, display requirements, and connected device. For example, one USB-C connection may carry: DisplayPort video to a display USB data from a touchscreen controller Power to a compatible peripheral This combination can reduce cable quantity and simplify system installation. However, DP Alt Mode still requires a DisplayPort signal from the host platform. A USB controller or USB-C connector alone cannot generate a video signal. USB Power Delivery USB Power Delivery, commonly called USB PD, manages power negotiation between connected devices. The USB PD source and connected device communicate to determine the supported voltage, current, and power level. The available output depends on the power circuit and design of the host system. USB PD should not be treated as a standard function of every USB-C port. Some USB-C ports provide only basic USB power, while other ports support negotiated Power Delivery. System designers must confirm whether a USB-C port acts as a power source or power sink. System designers must also verify whether the available output can support the connected device. For example, a 15W USB PD output may support selected compact displays and peripherals. A 15W output is not intended to replace the higher power required by notebook computers or high-power industrial equipment. Why USB-C Integration Is Different in Industrial Systems Consumer devices often integrate full-featured USB-C ports directly into the motherboard. Industrial platforms usually follow longer development and deployment cycles. An industrial system may continue using the same validated motherboard for many years. The motherboard may still provide sufficient computing performance, but the motherboard may not include USB-C, DP Alt Mode, or the required power output. A complete motherboard replacement can introduce additional work, including: Hardware qualification Software and driver validation BIOS verification Mechanical redesign Thermal evaluation Supply-chain requalification A modular expansion approach allows the system designer to add the required interface functions while retaining the existing computing platform. This approach can reduce redesign effort and improve flexibility across multiple system configurations. Industrial Applications for Full-Function USB-C A USB-C interface that combines data, DP Alt Mode, and Power Delivery can support several industrial applications. Industrial Human-Machine Interfaces An industrial computer can transmit video to an operator display through USB-C. The same connection can also carry USB data from a touchscreen controller when the system supports simultaneous display and USB operation. This configuration can simplify the connection between the computing unit and operator panel. Medical and Diagnostic Equipment Medical carts, diagnostic systems, and portable imaging equipment often require compact external connections. An integrated USB-C interface can reduce cable complexity between the embedded computer, display, and supported peripheral functions. Equipment designers must still validate electrical safety, power requirements, and application-specific certifications at the system level. Kiosks and Self-Service Terminals A kiosk can use USB-C for display output and touchscreen data. A reduced connector count can simplify internal assembly and maintenance. A modular interface can also help manufacturers reuse the same computing platform across different terminal configurations. Edge AI and Machine Vision Systems An edge system may require a local display for setup, diagnostics, monitoring, or maintenance. USB-C with DP Alt Mode can provide a compact connection for a service display without adding a full-size external display connector. The system can continue using separate high-bandwidth interfaces for cameras and other primary data sources. Mobile Robots and Automated Equipment A mobile robot or automated machine may require a local interface during commissioning and maintenance. A USB-C connection can support an integrated or temporary operator display while reducing the number of service connectors. System designers must still evaluate vibration, connector retention, cable routing, and environmental exposure before deployment. What System Designers Need to Verify Successful USB-C integration requires validation of the complete signal and power path. USB-C Integration Checklist (System designers should verify the host interface, DisplayPort source, power budget, cable capability, and operating environment.) Host Interface Compatibility The embedded platform must provide the interfaces required by the expansion module. System designers should confirm the M.2 key type, PCIe lane allocation, BIOS support, and mechanical clearance. DisplayPort Signal Source DP Alt Mode requires a DisplayPort source from the host platform. System designers must confirm that the motherboard or graphics subsystem can route the required DisplayPort signal to the expansion solution. An expansion card cannot create a display signal when the host system does not provide one. Power Budget The connected peripheral must remain within the available power output. System designers should calculate both continuous and peak power consumption. Cable Capability The USB-C cable must support the required combination of data, video, and power. A charge-only cable cannot carry USB data or DisplayPort video. System designers should use an appropriately specified cable and validate the final cable length under actual operating conditions. Operating Environment System designers should evaluate temperature, vibration, mechanical retention, electromagnetic compatibility, and connector durability. The final equipment design must provide the protection required by the deployment environment. Expanding USB-C Functionality Through M.2 For industrial systems built around validated computing platforms, adding new connectivity does not always have to start with a motherboard redesign. M.2 provides a modular path for extending platform functionality while preserving the existing system architecture. With the right host interfaces and signal routing, an M.2 expansion approach can open new possibilities for bringing USB-C data, display, and power capabilities into space-constrained embedded systems. What if the M.2 slot already in your system could do more? Building the Right USB-C Connection for Industrial Systems USB-C can simplify industrial connectivity, but the connector alone does not define the complete system capability. The host platform, expansion hardware, display source, power design, cable, and connected device must work together. USB data provides connectivity for peripherals. DP Alt Mode enables DisplayPort video through USB-C. USB Power Delivery provides negotiated power to compatible devices. When these functions are properly integrated, USB-C can reduce connection complexity while extending the capabilities of existing embedded platforms. For system designers, the question is no longer simply whether a platform has USB-C. The more important question is how USB-C can be added without compromising the platform already in place. Cervoz is preparing a new approach to that challenge. More details are coming soon.

Cervoz_Secure Your Mission-Critical Data with MIL-STD-810H M.2 NVMe SSDs

NEWS

2026.09.09

Secure Your Mission-Critical Data with MIL-STD-810H M.2 NVMe SSDs

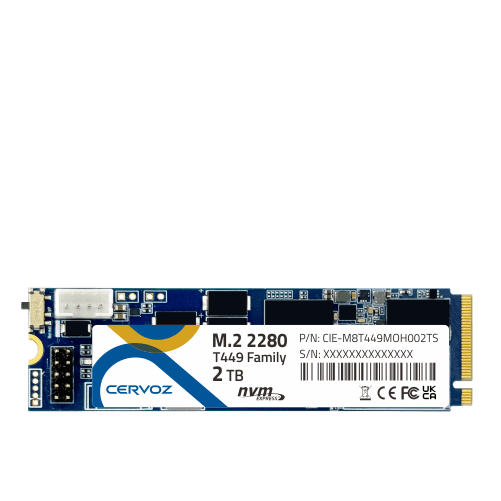

Embedded systems deployed in defense, aerospace, marine, transportation, and industrial automation require storage that remains reliable under harsh environmental conditions while protecting sensitive information throughout the equipment lifecycle. The Cervoz T449 and T459 Series extends Cervoz's industrial SSD portfolio with MIL-STD-810H compliant M.2 2280 NVMe SSDs, combining PCIe Gen4 performance, industrial-grade reliability, and hardware-based data protection for rugged embedded systems. Environmental Reliability Harsh environments place continuous mechanical and environmental stress on embedded storage. The T449 and T459 Series comply with MIL-STD-810H requirements for vibration, shock, and combined temperature-altitude testing to support reliable operation in demanding deployments. Anti-Vibration Fill is integrated as a standard design feature to mechanically secure the controller and NAND chips against prolonged vibration. For deployments in high-humidity or harsh outdoor environments, optional Conformal Coating provides a specialized moisture and chemical barrier, isolating sensitive circuitry from airborne Sustained Performance Applications such as mission computers, AI edge platforms, video recording, and industrial data logging require storage capable of maintaining stable write performance during continuous operation. Supporting PCIe Gen4 x4 NVMe, the T449 and T459 Series deliver up to 5,085 MB/s read and 4,765 MB/s write. Industrial 3D TLC NAND, LDPC error correction, wear leveling, and End-to-End Data Protection help maintain data integrity during sustained workloads. Hardware-Based Data Protection & Destruction In highly secure operations, protecting sensitive information goes far beyond standard software encryption. During equipment maintenance, redeployment, or in the event of hardware compromise, storage devices require immediate, foolproof, and irreversible sanitization methods that comply with strict security protocols. The T449 and T459 Series integrate Multi-Layered Data Security, managed at the hardware level, to address these critical security requirements: Write Protection A hardware-enforced lock that prevents unauthorized modification or tampering of critical boot files and data. Quick Erase Removes all stored data within seconds, preparing the SSD for redeployment or reuse. Physical Destroy The ultimate hardware-based safeguard. Via a dedicated hardware trigger, the SSD initiates high-voltage physical destruction, routing electrical overstress to burn out the NAND Flash controller and memory cells. This physically disables the silicon, ensuring sensitive data is permanently and irreversibly unrecoverable even if the physical drive is compromised or lost. Extended Endurance Long-term storage reliability depends on efficient flash management as much as NAND quality. The T459 Series further integrates Over-Provisioning, Dynamic SLC Write Cache, Safeguard, and Circuitguard technologies to reduce write amplification, improve flash endurance, and maintain consistent performance during continuous recording and other write-intensive applications. Target Applications Typical deployment platforms include: T449 & T459 at a Glance While both product families share the same rugged hardware architecture and hardware-based security framework, the T459 Series incorporates specialized Over-Provisioning technology to maximize write consistency and flash endurance for sustained, write-heavy workloads. Family T449 T459 Interface Gen 4x4 Connector M.2 2280 (M) Capacity 128GB - 2TB 120GB - 1920GB Performance Seq. Read/ Write(MB/s) 5,085/ 4,765 Features MIL-STD-810H √ √ Multi-Layered Data Security (Write Protection/Quick Erase/ Physical Destroy) √ √ Conformal Coating Optional Optional Anti-Vibration Fill √ √ End-to-End data protection √ √ SLC write cache technology √ √ Safeguard/Circuitguard √ √ Over-provisioning technology √ Operating Temp. Standard Temp. (0°C ~ 70°C) / Wide Temp. (-40°C ~ 85°C) √ √ Learn More The Cervoz T449 and T459 Series are available in capacities up to 2TB, with both standard (0°C to 70°C) and wide (-40°C to +85°C) temperature options. Contact the Cervoz team to learn more about the new MIL-STD-810H compliant SSD family.

# Military # Rugged Defense # Industrial Storage # 2026

EVENTS & VIDEO

What Is a PCIe SSD? How It Works and Why It’s Faster

# Video # 2026

Cervoz_Introducing Cervoz's MEC LAN Card with PoE+ Capability

NEWS

2026.08.05

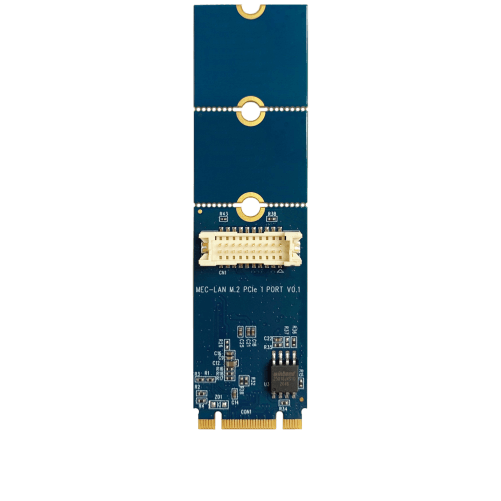

Introducing Cervoz's MEC LAN Card with PoE+ Capability

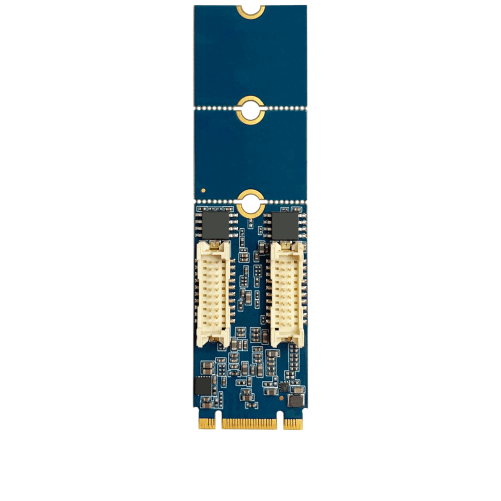

More Networking. Less Available Space. Machine vision systems, automation controllers, and edge computing platforms continue to demand higher bandwidth and additional network interfaces. Yet available expansion resources have not grown at the same pace. Adding Ethernet ports is easy. Integrating them without consuming valuable board space, increasing thermal load, or limiting future scalability is the real challenge. The new Cervoz MEC-LAN FlexPoE Series addresses this challenge through a modular networking architecture that delivers dual-port Ethernet expansion with optional PoE+ capability, enabling greater flexibility within space-constrained embedded platforms. Expand Network Capacity Without Sacrificing System Resources As embedded platforms continue to integrate computing, storage, acceleration, and communication functions into increasingly smaller footprints, expansion interfaces have become a critical resource. Available in M.2 and Mini PCIe form factors, the MEC-LAN FlexPoE Series provides dual-port 1GbE and high-speed 2.5GbE networking without occupying a traditional PCIe slot. This enables engineering teams to preserve valuable resources for GPUs, storage devices, AI accelerators, or other application-specific hardware. Powered by Intel® Ethernet controllers, the MEC-LAN FlexPoE Series delivers stable, low-latency performance for bandwidth-intensive applications that require reliable data transmission. PoE+ Capability Without Traditional Design Constraints Conventional PoE+ designs often increase board size, thermal load, and integration complexity. The MEC-LAN FlexPoE Series address these challenges with a modular Mother-Daughter architecture that separates Ethernet communication from power delivery. The optional IEEE 802.3at PoE+ daughter board supports 12V to 24V input and delivers up to 25.5W per port, enabling flexible deployment of PoE-powered devices while preserving a compact LAN card footprint. Simplify Installation with Single-Cable Power and Data In remote locations and space-limited enclosures, installation efficiency is often just as important as network performance. The optional PoE+ module delivers both power and data through a single Ethernet cable, reducing wiring complexity, shortening installation time, and simplifying long-term maintenance. Equipped with two independent PSE channels, the module provides stable power delivery for connected devices while helping maintain reliable operation in demanding environments. Designed for Real-World System Integration Electrical performance alone does not guarantee successful system integration. Mechanical limitations frequently introduce additional challenges during product development. To simplify integration across a wide range of platforms, the MEC-LAN FlexPoE Series incorporate Cervoz's exclusive MECFIX architecture, supporting standard brackets, low-profile brackets, and customized internal mounting configurations. This flexibility allows network interfaces to be positioned according to application requirements rather than chassis restrictions, helping accelerate development cycles while minimizing mechanical redesign. For applications requiring enhanced environmental resilience, the MEC-LAN FlexPoE Series are available with RJ45 or M12 X-code connectivity options, supporting transportation, outdoor, and other demanding operating environments. Engineered for Long-Term Reliability Designed for demanding industrial environments, the MEC-LAN FlexPoE Series support operating temperatures from -40°C to 85°C and incorporates ESD, and surge protection. Selected models also feature isolated Ethernet design, helping maintain stable communications in electrically noisy environments. Industrial Applications Smart Security & Surveillance Provide network access and PoE+ power for IP cameras and PTZ surveillance systems. Industrial Automation & Machine Vision Support vision-guided inspection systems and automated control platforms that require reliable, low-latency communications. Intelligent Transportation Systems (ITS) Enable robust networking for roadside equipment, transportation infrastructure, and outdoor communication systems. MEC-LAN FlexPoE Series Model No. Network Form Factor Operating Temp. MEC-LAN-2002P (PoE+) Dual 1GbE M.2 2242 / 2260 / 2280 (3-in-1) −40°C ~ 85°C MEC-LAN-2002P-S (PoE+) 0°C ~ 70°C MEC-LAN-2602P (PoE+) Dual 2.5GbE M.2 2280 −40°C ~ 85°C MEC-LAN-M102P (PoE+) Dual 1GbE Mini PCIe −40°C ~ 85°C MEC-LAN-M102P-S (PoE+) 0°C ~ 70°C MEC-LAN-M602P (PoE+) Dual 2.5GbE −40°C ~ 85°C Expand Your Network. Not Your Footprint. The Cervoz MEC-LAN FlexPoE Series combine space-efficient Ethernet expansion, modular PoE+ capability, and flexible integration into a unified networking platform. Because more networking should never mean less design freedom. Contact us to learn how the MEC-LAN FlexPoE Series can simplify your next networking deployment.

# Expansion Card # Embedded Module # 2026

Cervoz_What is a Differential Signaling: How It Works, Examples & More

BLOG

2026.07.31

What is a Differential Signaling: How It Works, Examples & More

High-speed devices rely on fast, stable data transfer, but as signal speeds increase, even small noise, voltage shifts, or layout issues can cause communication errors. For those who are new to hardware design, differential signaling may sound complex, yet it is one of the core methods behind modern interfaces. In this article, we will explain everything you need to know about differential signaling basics, including how it works, how it compares with single-ended signaling, why it improves reliability, and where it appears in real-world systems. What is a Differential Signal? A differential signal is a way of sending electrical data through two wires instead of one. In high-speed communication, these two conductors are known as differential pair signals. They are often described as the A-wire and B-wire, and they carry the same data in opposite electrical directions. In simple terms, when one wire carries a positive voltage, the other carries an equal negative voltage at the same time. These two signals have the same strength but opposite phase. Instead of checking one signal against ground, the receiver reads the voltage difference between the two wires. This makes differential signaling especially useful in high-speed systems, where stable data transfer is important. By comparing two complementary signals, the receiver can identify binary data more accurately, even when the circuit is exposed to electrical noise or small voltage disturbances. Single-Ended vs Differential Signals To better understand why differential signaling is widely used in modern high-speed applications, we must compare it with single-ended signaling. Both methods transmit electrical data from a transmitter to a receiver, but they differ in how the signal is referenced, how much noise they can tolerate, and how well they perform at higher speeds. In single-ended signaling, data is sent through one signal wire, and the voltage is measured against a shared ground reference. This method is simple and uses fewer traces on a circuit board, but it is more sensitive to noise. If electrical interference affects the signal wire or if the ground level shifts, the receiver may misread the data. In differential signaling, the receiver does not depend on a single wire or an absolute ground voltage. Instead, it compares the voltage between two opposite-polarity wires. Since the pair is routed close together, outside noise usually affects both wires in a similar way. The receiver subtracts one signal from the other, which helps reject shared noise and preserve the original data. Feature Single-Ended Signaling Differential Signaling Wiring Uses one signal wire with a return path or ground Uses two signal wires as a matched pair Signal Reference Measured against a common ground Measured by comparing the two wires Noise Immunity More sensitive to EMI and ground noise Stronger noise rejection through common-mode cancellation Ground Dependence Highly affected by ground shifts Less affected by ground potential differences Voltage Requirement Often needs higher voltage swings for clear detection Can work with lower voltage swings and enable higher power efficiency High-speed Performance More limited at higher frequencies Better suited for fast data transfer EMI Emissions More likely to radiate noise Lower EMI due to opposing signal fields PCB Layout Space Uses fewer traces Requires two matched traces per signal How Does Differential Signaling Work? Differential signaling works by sending information as the voltage difference between two matched conductors. In a differential pair circuit, the receiver compares the two signal lines and determines the data value from their relationship. For example, if the A-wire is at a higher voltage than the B-wire, the receiver may read it as logic high, or 1. If the B-wire is higher than the A-wire, the receiver reads it as logic low, or 0. The key point is that the receiver focuses on the line-to-line voltage difference, not the absolute voltage of each line compared with ground. This design also helps reduce errors caused by ground offsets. In real systems, the ground level at the transmitter and receiver may not be exactly the same. Since the receiver reads the difference between the two wires, small shifts in ground voltage are less likely to affect the final logic decision. Noise rejection is another major part of how differential signaling works. When the two wires are placed close together through proper differential pair routing, external interference usually affects both lines in a similar way. Because the receiver subtracts one signal from the other, this shared noise is largely canceled out. This process is known as common-mode rejection. Two common technologies used in high-speed differential signaling are LVDS and CML. LVDS, or Low-Voltage Differential Signaling, is widely used for high-speed data transmission with low power consumption. It uses a small voltage swing, which allows signals to switch quickly while producing less electrical noise. Because of this, LVDS is often found in display interfaces, embedded systems, and other applications that require stable data transfer over copper traces or cables. CML, or Current Mode Logic, is another differential signaling technology designed for very high-speed serial communication. It is commonly used in interfaces where signal quality must be maintained at high data rates, such as PCIe, SATA, SAS, retimers, and redrivers. Compared with LVDS, CML is often associated with faster serial links and high-performance signal-conditioning circuits. In both LVDS and CML designs, the quality of the differential pair circuit depends heavily on layout. Trace spacing, impedance control, length matching, and clean routing all help maintain signal balance, reduce reflection, and support reliable high-speed communication. Advantages of Differential Signaling Differential signaling is widely used in high-speed communication because it helps improve signal integrity (SI), by keeping signals cleaner, more stable, and easier to interpret. Its advantages come from the way the two signal lines work together as a balanced pair, allowing the system to reduce noise, EMI, crosstalk, timing errors, and ground-related disturbances. Better Noise Resistance One of the biggest advantages of differential signaling is its strong resistance to external noise. When electromagnetic interference reaches the pair, it usually affects both wires in nearly the same way because they are routed close together. This shared interference is known as common-mode noise. The ability of a differential receiver to reject this type of shared noise is often described by Common-Mode Rejection Ratio, or CMRR. A higher CMRR means the receiver is better at ignoring noise that appears on both lines while preserving the intended voltage difference. This allows the original signal to remain clearer, even in electrically noisy environments. Lower EMI Through Field Cancellation It also helps reduce the amount of electromagnetic interference generated by the circuit itself. Because the two wires carry equal but opposite currents, the electromagnetic fields around them tend to cancel each other out. This field cancellation lowers radiated emissions, making differential signaling useful in compact systems where many high-speed traces and components are placed close together. Less Crosstalk Between Signals Crosstalk happens when one signal unintentionally affects another nearby signal. Differential pairs help reduce this problem in two ways. First, the balanced pair emits less interference to surrounding traces. Second, if nearby noise affects the pair, it usually enters both wires in a similar manner. The receiver can then reject much of that shared noise, helping the signal remain stable and accurate. Lower-Voltage Operation Differential signaling can operate with smaller voltage swings than many single-ended methods. A lower voltage swing means the signal needs less time to move between logic states, which supports faster switching. This also helps reduce power consumption, making differential signaling suitable for devices and systems that need both high-speed performance and efficient operation. Higher Immunity to Ground Offsets In real systems, the ground voltage between a transmitter and receiver may not always be perfectly equal. This can happen across long cables, between different circuit boards, or in industrial environments with unstable electrical conditions. Because differential signaling relies on the voltage difference between the two signal lines, it is less affected by these ground offsets. This makes it more reliable for longer links and systems where multiple devices need to communicate accurately. More Precise Timing At high speeds, timing accuracy becomes critical. Differential signaling helps because the receiver detects the point where one signal becomes higher than the other, rather than relying on a single voltage crossing a fixed ground-referenced threshold. This balanced switching behavior supports cleaner transitions, more accurate data recovery, and stronger overall signal integrity in high-speed digital communication. Real-World Examples of Differential Signaling Differential signaling is used across many industries because modern systems need fast data transfer, stable timing, and reliable communication in noisy electrical environments. Its applications range from everyday consumer devices to industrial automation, automotive networks, and data center infrastructure. Computing and Peripheral Interfaces In computing systems, differential signaling is mainly used to support high-speed communication between processors, storage devices, expansion cards, and external peripherals. As computers become faster and more compact, internal signal paths must handle higher data rates while staying stable across dense PCB layouts and connectors. USB: Used for keyboards, mice, flash drives, cameras, docking stations, external SSDs, and other computer peripherals. PCIe: Used inside computers and embedded systems to connect CPUs, GPUs, NVMe SSDs, network cards, and expansion modules. SATA and SAS: Used for HDDs, SSDs, enterprise storage systems, and server backplanes. DDR SDRAM: Uses differential clock and data strobe signals (DQS) to improve timing accuracy and signal integrity, ensuring stable high-speed data transfer. FireWire and HyperTransport: Used in older or specialized high-speed computer communication systems. Audio and Video Standards In audio and video systems, differential signaling helps transmit large amounts of data while maintaining signal quality. This is especially important for high-resolution displays, digital video interfaces, and professional audio setups where distortion, noise, or signal loss can directly affect user experience. HDMI: Used for TVs, monitors, projectors, gaming consoles, media players, and laptops to transmit digital video and audio. DisplayPort: Used for high-resolution monitors, workstations, graphics cards, docking stations, and professional display setups. LVDS: Commonly used in internal laptop displays, tablet panels, industrial HMI screens, and embedded display modules. Balanced audio: Used in microphones, mixers, audio interfaces, studio equipment, and live sound systems to reduce noise over long cable runs. Networking and Communication In networking, differential signaling is essential because data often travels through long cables, connectors, and complex infrastructure. It helps maintain signal integrity across wired networks, telecom systems, and high-performance computing environments where stable data transmission is critical. Ethernet: Ethernet differential signaling is used in twisted-pair network cables for routers, switches, computers, industrial gateways, and data center equipment. DSL: Used for internet transmission over traditional copper telephone lines. InfiniBand: Used in high-performance computing, supercomputers, AI servers, and data centers that require very fast networking. Automotive and Industrial Systems Automotive and industrial environments often contain motors, power electronics, long wiring harnesses, and strong electromagnetic noise. Differential signaling is valuable in these fields because it allows controllers, sensors, and devices to communicate more reliably under harsh operating conditions. CAN bus: Used in vehicles, industrial machines, medical equipment, aviation systems, battery management systems, and embedded controllers. RS-422: Used for long-distance serial communication, industrial instruments, automation equipment, and control systems. RS-485: Used in factory automation, motor drives, sensors, building management systems, and multi-device communication networks. FAQs What are the benefits of differential signaling? Differential signaling improves data reliability by reducing noise, EMI, crosstalk, and ground-related errors. Since the receiver reads the voltage difference between two complementary wires, the signal remains clearer in high-speed and electrically noisy environments. It also supports lower-voltage operation, faster switching, better timing accuracy, and stable communication across cables, connectors, and dense PCB layouts. Is differential signaling the same as a differential pair? Not exactly. Differential signaling is the transmission method, while a differential pair is the physical pair of traces or wires used to carry the signal. In other words, differential signaling describes how data is sent and interpreted, and the differential pair is the actual routing structure that makes this method possible in a circuit. Why does differential signaling reduce noise? Differential signaling reduces noise through common-mode rejection. When external interference reaches the two closely routed wires, it usually affects both wires in a similar way. The receiver subtracts one signal from the other, so shared noise is canceled out. This allows the receiver to focus on the useful voltage difference and recover cleaner data. Does differential signaling need ground? Yes, differential signaling still needs a ground reference for the overall circuit to operate safely and correctly in real-world electronic devices. However, the receiver does not use ground as the main reference for reading logic levels. Instead, it compares the voltage difference between the two signal lines, making it much less sensitive to ground offsets than single-ended signaling. Why is differential pair routing important? Differential pair routing is important because the two signal traces must stay balanced for differential signaling to work properly. Matching trace length, spacing, and impedance helps the signals arrive together and maintain equal behavior. Poor routing can cause skew, reflections, noise imbalance, and signal distortion, which may reduce data accuracy in high-speed communication systems. Can differential signaling be used for long-distance communication? Yes. Differential signaling is often used for longer communication links because it can reject common-mode noise and tolerate some ground potential differences between devices. Standards such as RS-422, RS-485, Ethernet, and CAN bus use differential signaling for stable data transmission over cables. Are all high-speed interfaces differential? Not all high-speed interfaces are differential, but many modern high-speed standards use differential signaling because it supports better noise immunity, lower EMI, and more stable timing. Interfaces such as USB, HDMI, PCIe, SATA, Ethernet, and DisplayPort commonly rely on differential pairs. Build Reliable High-Speed Industrial Systems with Cervoz Differential signaling plays a critical role in modern industrial computing, especially in systems that rely on high-speed data interfaces. Technologies such as PCIe, NVMe, SATA, and USB all depend on stable differential pair signals to transfer data quickly and accurately while reducing noise, timing errors, EMI, and signal loss. For embedded computers, automation equipment, edge devices, and industrial control systems, this signal stability is essential for long-term performance and reliable operation. Cervoz provides industrial-grade storage, memory, and expansion solutions designed for demanding environments where speed and stability matter. From industrial SSDs and DRAM modules to expansion cards, Cervoz helps system builders create reliable platforms for high-speed data transmission, harsh operating conditions, and mission-critical applications. Contact us now for more information about our solutions!

# Embedded Computing # Industrial Automation # Expansion Card # 2026

Cervoz_What is a CAN Bus: Meaning, Advantages, Applications, and More

BLOG

2026.07.20

What is a CAN Bus: Meaning, Advantages, Applications, and More

Modern machines are no longer built from isolated parts. In a car, the engine, brakes, battery system, dashboard, sensors, and safety modules all need to exchange information instantly. In factories, robots, controllers, and monitoring devices face the same challenge. This is where CAN Bus comes in. As a key communication protocol, CAN Bus plays an essential role not only in the automotive sector but also in industrial automation, embedded systems, medical equipment, and many other applications. In this article, we will explore the meaning of CAN bus, how CAN bus works, the key advantages of CAN bus, its common applications, and how Cervoz's CAN bus expansion card helps industrial systems add stable and flexible CAN connectivity. What is CAN Bus? Let's start with the basics: a vehicle bus, often referred to simply as a bus, is an internal communication network that connects different electronic components within a vehicle. Now, enter the Controller Area Network, or CAN bus, a specialized type of vehicle bus that allows electronic control units (ECUs) or nodes to communicate with each other directly without relying on a central computer. The CAN bus protocol was first developed by Bosch in the early 1980s and officially introduced in 1986 as a solution for increasingly complex automotive electronics. As more sensors, controllers, and electronic functions were added to vehicles, traditional point-to-point wiring became heavier, more complicated, and harder to manage. CAN bus helped solve this challenge by allowing multiple devices to share the same communication network, making the CAN bus system in vehicle design more organized and scalable. The effectiveness of CAN bus lies in its message-based communication method. Instead of sending data to a specific device address, each message carries an identifier that defines its meaning and priority. This allows connected nodes to recognize whether a message is relevant to them and helps the network manage communication in an efficient way. CAN bus, much like RS-485, uses differential signaling to support stable communication in electrically noisy environments, though the two technologies differ in protocol structure and system design. CAN bus also includes defined rules for message format, error handling, and network behavior, which are standardized under the ISO 11898 series. The original ISO 11898 standard was published in 1993 and later reorganized into separate parts for the CAN protocol and physical layer specifications. ISO Standard Main Focus Simple Explanation ISO 11898-1 CAN data link layer and physical signaling Defines the core CAN protocol, including message framing, arbitration, error handling, and how data is organized for communication. ISO 11898-2 High-speed CAN physical layer Defines the high-speed physical layer used in many automotive and industrial CAN networks. ISO 11898-3 Low-speed, fault-tolerant CAN physical layer Defines the low-speed, fault-tolerant physical layer designed for applications where continued operation is important even if wiring faults occur. How Does CAN Bus Work? A CAN bus network is made up of multiple connected nodes, such as engine control units, sensors, actuators, gateways, or industrial controllers. In a vehicle, these nodes are often called ECUs, or Electronic Control Units. Instead of using separate wiring for every signal, each ECU connects to the shared CAN bus and exchanges messages with other devices on the same network. CAN bus uses message-based communication. This means a message is not sent to one fixed destination address. Instead, every node on the bus can receive the transmitted frame, and each node checks the message identifier to decide whether the information is relevant to its own function. This design helps reduce wiring complexity while allowing different systems, such as braking, engine control, temperature sensing, and diagnostics, to share data efficiently. In a typical ECU, three key parts work together to complete CAN bus communication: ECU Part Main Role in CAN Bus Communication Microcontroller Runs the application logic, such as reading sensor values, controlling actuators, or making system decisions. CAN Controller Handles the CAN protocol tasks, including message framing, filtering, arbitration, and error handling. CAN Transceiver Converts digital signals from the CAN controller into physical CAN signals on the bus, and converts received bus signals back for the controller. When an ECU needs to send CAN bus data, the microcontroller prepares the information, such as vehicle speed, engine temperature, braking status, or sensor feedback. The CAN controller then formats this information into a CAN message frame. A standard CAN frame includes fields such as an identifier, control information, data payload, CRC, acknowledgment, and end-of-frame bits. After the message is prepared, the CAN transceiver drives the differential signal onto the CAN High and CAN Low wires. CAN networks commonly use a twisted two-wire bus, where the same signal is carried in opposite voltage directions. This differential signaling helps improve noise resistance, which is especially useful in vehicles, industrial machines, and other electrically noisy environments. One important feature of CAN bus is arbitration. Because multiple nodes share the same communication line, more than one node may try to transmit at the same time. CAN solves this by using the message identifier to determine priority. During arbitration, the message with the lowest numerical arbitration ID has the highest priority and continues transmitting, while lower-priority messages wait and try again when the bus becomes available. This allows time-sensitive data, such as braking, engine control, or safety-related signals, to be transmitted without being delayed by less urgent information. Different Versions of CAN Bus As CAN bus technology has evolved, different CAN variants have been developed to support different data rates, payload sizes, fault-tolerance needs, and system architectures. CAN bus types can be understood in two ways. Low-speed CAN and high-speed CAN mainly describe the physical communication layer, such as wiring, signaling, and transmission speed. Classical CAN, CAN FD, and CAN XL, on the other hand, describe different protocol generations, including how data is framed, how much data can be carried, and how fast information can be transferred. Despite these differences, all CAN types are based on the same core concept: multiple devices are connected to a shared bus, and they exchange data through message-based communication instead of direct point-to-point wiring. Low-speed CAN, also known as fault-tolerant CAN, is commonly associated with ISO 11898-3. It is designed for lower data rates, typically up to 125 kbit/s, and is often used in applications where continued operation is more important than high-speed communication. Because it can keep working under certain wiring fault conditions, low-speed CAN is commonly used for less time-critical in-vehicle functions such as body electronics, comfort control, door modules, lighting, and seat control systems. High-speed CAN is the most widely used CAN physical layer in automotive and industrial systems. Based on ISO 11898-2, it is commonly used with Classical CAN communication up to 1 Mbit/s. This makes it suitable for systems that need fast and reliable real-time data exchange, such as powertrain control, chassis systems, industrial controllers, and embedded equipment. Newer ISO 11898-2 physical-layer updates also support higher bit rates for CAN FD data transmission, depending on the network layout and transceiver design. CAN FD, short for CAN Flexible Data-Rate, was developed to increase both communication efficiency and payload capacity. Compared with Classical CAN, which carries up to 8 bytes of data per frame, CAN FD can carry up to 64 bytes. It also supports two bit-rate phases: a normal arbitration phase and a faster data phase. This makes CAN FD useful for modern ECUs, diagnostics, battery systems, high-rate sensors, and applications that need to transfer more data without moving to a completely different network technology. CAN XL, or CAN eXtended Length, is the next step in CAN development. It is designed for much higher data throughput while keeping many of the advantages of CAN, such as priority-based communication and robust networking. CAN XL supports data fields of up to 2048 bytes and can reach data rates up to 20 Mbit/s when suitable transceivers and network designs are used. This makes it useful for vehicle gateways, zonal architectures, advanced sensors, and systems that need to connect traditional CAN networks with higher-bandwidth communication architectures. CAN Type Typical Standard / Reference Max Payload Typical Speed Range Key Characteristics Common Use Cases Low-speed CAN / Fault-tolerant CAN ISO 11898-3 Up to 8 bytes Up to 125 kbit/s Lower speed, fault-tolerant physical layer, supports continued operation under certain wiring faults Body electronics, comfort control, door modules, seat control High-speed CAN / Classical CAN ISO 11898-2 physical layer, ISO 11898-1 data link layer Up to 8 bytes Up to 1 Mbit/s for Classical CAN Widely used, reliable, suitable for real-time control communication Powertrain, chassis control, industrial equipment, embedded controllers CAN FD ISO 11898-1 with CAN FD support Up to 64 bytes Arbitration phase usually up to 1 Mbit/s; faster data phase depends on transceiver and network design Larger payload and flexible data rate for higher throughput Modern vehicle ECUs, diagnostics, battery systems, high-rate sensors CAN XL ISO 11898-1:2024, CiA 610 development references Up to 2048 bytes Up to 20 Mbit/s, depending on transceiver and topology Much larger data field, higher throughput, designed for data-intensive systems Vehicle gateways, zonal architectures, advanced sensors, Ethernet-related integration Benefits of Using CAN Bus Reliability One of the main advantages of CAN bus is its strong reliability in demanding environments. A CAN bus system supports built-in error detection, fault confinement, and automatic message retransmission, helping ensure that data is delivered accurately even when electrical noise is present. This robustness is especially important in vehicles, industrial equipment, and embedded systems where communication errors may affect safety or performance. Even if one node experiences a failure, the network can help isolate the faulty node and allow other parts of the system to continue operating. Cost-Effective Wiring CAN bus helps reduce wiring complexity by allowing multiple Electronic Control Units, or ECUs, to communicate through a shared communication interface instead of requiring separate point-to-point wiring for every signal. This reduced wiring design lowers cable weight, saves installation space, simplifies system layout, and helps reduce material and maintenance costs. In automotive applications, this is especially valuable because modern vehicles contain many ECUs, sensors, and control modules that need to exchange data constantly. Efficiency CAN bus is designed for efficient and time-sensitive communication. Each CAN message includes an identifier that also defines its priority. When multiple nodes attempt to send data at the same time, CAN uses bitwise arbitration to make sure the highest-priority message continues transmitting first. This priority handling allows critical data, such as braking, engine control, battery status, or safety signals, to be delivered with low latency. As a result, CAN bus is well suited for real-time communication where fast and predictable data exchange is required. Flexibility CAN bus is also flexible because all nodes on the network can receive the same transmitted messages and decide whether the data is relevant to their own function. This message-based structure makes it easier to add, remove, or modify nodes without redesigning the entire communication system. For example, a new sensor, control module, or diagnostic device can be integrated into the existing CAN bus network as long as it follows the required communication rules. This makes CAN bus highly practical for systems that may need future upgrades, customization, or expansion. Strong Noise Resistance CAN bus uses differential signaling through CANH and CANL lines, which helps reduce the impact of electrical interference. Instead of relying on a single voltage signal, the receiver reads the voltage difference between the two lines. This design improves noise immunity and makes CAN bus suitable for electrically noisy environments such as vehicles, factories, power systems, and heavy machinery. It also helps support stable communication over longer cable runs compared with many simple single-ended signal designs. Applications of CAN Bus CAN bus was originally developed for vehicles, but its reliable communication design has made it useful in many other industries. Anywhere multiple electronic devices need to exchange data quickly and consistently, CAN bus can provide a practical communication solution. Today, it is commonly found in automotive systems, industrial equipment, medical devices, energy systems, heavy-duty machinery, transportation, and embedded applications. Automotive Electronics The application scope of CAN bus in vehicles is extensive, ranging from engine control and instrument panels to safety systems and entertainment units. Its high-speed transmission and reliability enable real-time communication among various in-vehicle devices, enhancing both driving experiences and vehicle performance. Industrial Automation In the industrial realm, CAN bus connects a range of automated devices, from robots to production line monitoring systems. This real-time communication capability facilitates efficient collaboration among factory equipment, boosting production efficiency. Aerospace and UAVs CAN bus can also be found in aerospace-related applications such as UAVs, flight control systems, sensors, power modules, and monitoring devices. These systems often require reliable communication between compact electronic modules, making CAN bus a practical choice for distributed control and real-time data exchange. Embedded Systems CAN bus in embedded systems facilitates connections among diverse devices, such as smart home systems, medical devices, and consumer electronics. This connectivity enables seamless data exchange and control among devices. Medical Equipment Medical equipment often includes multiple internal modules that need to work together accurately and reliably. CAN bus can be understood as the basic communication network, while CANopen is a higher-level protocol built on CAN bus that helps standardize how devices exchange data. CAN bus and CANopen can be used in systems such as imaging equipment, patient positioning devices, laboratory machines, and motorized medical equipment. They help connect sensors, motors, controllers, displays, and monitoring units through a structured communication network, allowing different parts of the device to exchange status and control data efficiently. Railway and Transportation Systems In railway and transportation systems, CAN bus can support communication between onboard control units, door systems, lighting, HVAC systems (Heating, Ventilation, and Air Conditioning), diagnostic devices, and monitoring equipment. Because these systems often contain many distributed electronic modules, CAN-based communication helps simplify wiring, improve coordination, and support stable long-term operation in demanding vehicle environments. Marine Systems In marine applications, CAN bus is commonly seen through CAN-based networks such as NMEA 2000. It can be used to connect engine control, power, and navigation systems, plus vessel monitoring devices and onboard electronics. Since boats and ships often contain electronic systems spread across different areas, a shared communication network helps reduce wiring complexity and gives operators better visibility into vessel status. Energy and Power Systems CAN bus is also used in many energy-related applications, including battery management systems, energy storage systems, power converters, EV charging equipment, and inverter-related communication. These systems often need to monitor voltage, current, temperature, state of charge, fault status, and operating conditions. CAN bus helps different modules exchange this information efficiently, supporting safer and more stable power management. FAQs What is CAN Bus used for? CAN bus is used to connect multiple electronic devices so they can exchange data through a shared communication network. It is widely used in vehicles, industrial automation, medical equipment, energy systems, heavy-duty machinery, railway systems, marine systems, and embedded devices. Why is CAN bus important in vehicles? CAN bus is important in vehicles because it allows different ECUs, such as engine control, braking, dashboard, lighting, battery, and safety modules, to communicate in real time. This helps reduce wiring complexity while supporting stable communication between many in-vehicle systems. What are the main advantages of CAN bus? The main advantages of CAN bus include reliable communication, reduced wiring, strong noise resistance, priority-based message handling, real-time data exchange, and easier system expansion. These features make it suitable for vehicles, industrial equipment, and other systems that require stable device communication. What is the difference between CANH and CANL? CANH stands for CAN High, and CANL stands for CAN Low. They are the two signal lines used in a CAN bus network. CAN bus uses differential signaling, meaning devices read the voltage difference between CANH and CANL to transmit data more reliably in noisy environments. What is the maximum CAN bus speed? For Classical high-speed CAN, the maximum bit rate is generally 1 Mbit/s under ISO 11898-2. CAN FD can transmit data faster in the data phase and supports larger payloads, while CAN XL can support data throughput up to 20 Mbit/s depending on the transceiver and network design. What is the difference between CAN and CAN FD? Classical CAN supports up to 8 bytes of data per frame, while CAN FD supports up to 64 bytes. CAN FD also allows a faster data phase, which helps improve data throughput for modern vehicle ECUs, diagnostics, battery systems, and higher-data applications. How many devices can connect to a CAN bus? There is no single fixed number for every CAN bus system. The number of devices depends on factors such as transceiver capability, bit rate, cable length, bus loading, termination, and overall network design. In practical systems, engineers must design the bus so signal quality and timing remain stable across all connected nodes. Explore Cervoz CAN Bus Module Solutions for Industrial Connectivity As communication demands continue to grow across automotive, industrial automation, and embedded systems, CAN bus remains a reliable technology for stable device-to-device data transfer. Cervoz supports these needs with our CAN bus PCIe expansion card solutions, which can function as practical CAN bus modules for industrial computers and embedded platforms. Our latest CAN FD expansion card also earned an Embedded Award 2026 nomination and the Community Choice Award at Embedded World 2026, highlighting its value for reliable communication in compact embedded systems. By adding a dependable CAN bus interface through a PCIe expansion design, you can improve system connectivity, device control, and long-term communication reliability. Contact us to for more information or explore our latest CAN bus product offerings and bring more innovation and reliability to your industrial projects.
