T436 Family

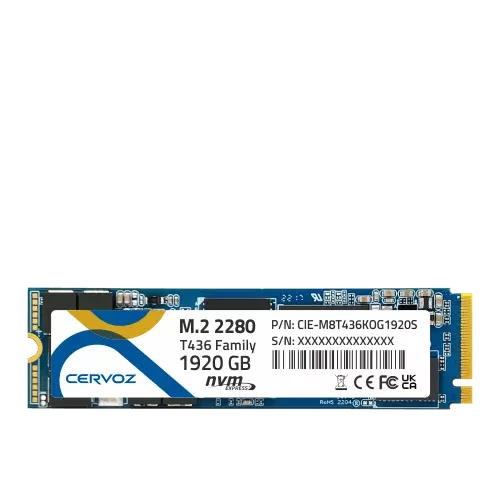

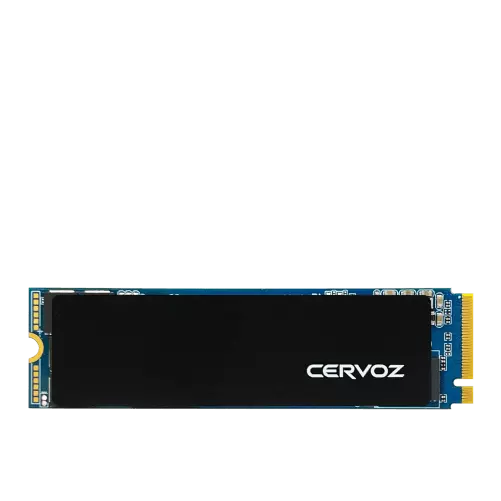

Industrial M.2 2280 Embedded Module - T436
Features
- Compliant with PCIe Gen3x4 interface
- Compliance: NVMe 1.3/ PCI Express Base 3.1
- TLC NAND flash memory
- Capacity: 240GB ~ 1920GB
- With DRAM Buffer
- Powerguard Function (Power Loss Protection)
- Support AES 256-bit Encryption
- End-to-End data protection
- Dynamic Thermal throttling
Cervoz Industrial M.2 2280 Embedded Module T436 family is a Solid State Flash Disk product that is in compliance with the M.2 and PCIe Gen3x4 standards. M.2 2280 T436 family fits in any M.2 2280(M) sockets in a PC or motherboard; it can be used for both booting and storage purposes. In addition, T436 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges. With this special design, M.2 2280 is constantly charging the tantalum capacitors with 12V power during its operation.

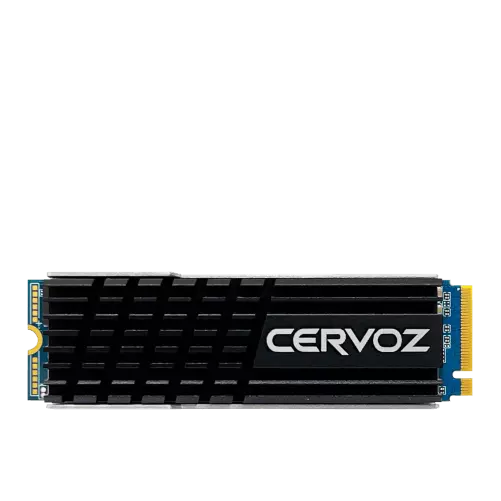

T436 family uses SSD grade quality TLC flash memory from the industry leading manufacturer Kioxia. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. Meanwhile, M.2 2280 T436 family with heatsink design to heat dissipation effectively and achieve the best performance. This product includes various capacities to choose from. T436 family offers outstanding performance and reliability; the product family is a perfect solution which strives for multi-tasking capabilities, high efficiency and data protection in specific industrial applications.
T436 family uses SSD grade quality TLC flash memory from the industry leading manufacturer Kioxia. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. Meanwhile, M.2 2280 T436 family with heatsink design to heat dissipation effectively and achieve the best performance. This product includes various capacities to choose from. T436 family offers outstanding performance and reliability; the product family is a perfect solution which strives for multi-tasking capabilities, high efficiency and data protection in specific industrial applications.
Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Connector
M.2 (M)
NAND Flash Type
3D TLC
Capacity
Standard Temp.: 240GB~1920GB, Wide Temp.: 240GB~960GB
Dimension (LxWxH/mm)
80.00 x 22.00 x 3.50
Sequential Read
up to 3,445MB/s
Sequential Write
up to 1,000MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
240GB : 352, 480GB : 703, 960GB : 1406, 1920GB : 2813
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 6,000mW, Idle mode: < 2,000mW
With DRAM Buffer
✓
Powerguard
✓
Specialty Technology
Support AES 256-bit, End-to-End data protection, Dynamic Thermal throttling
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-M8T436KMG240GS | CIE-M8T436KMG240GW | 240GB |
| CIE-M8T436KMG480GS | CIE-M8T436KMG480GW | 480GB |
| CIE-M8T436KNG960GS | CIE-M8T436KNG960GW | 960GB |
| CIE-M8T436KOG1920S | - | 1920GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2023.02.07 | Cervoz_Industrial_Embedded_Module_M.2 2280_T436_Datasheet_Rev1.1 | 1.32 MB |
