T425 Family

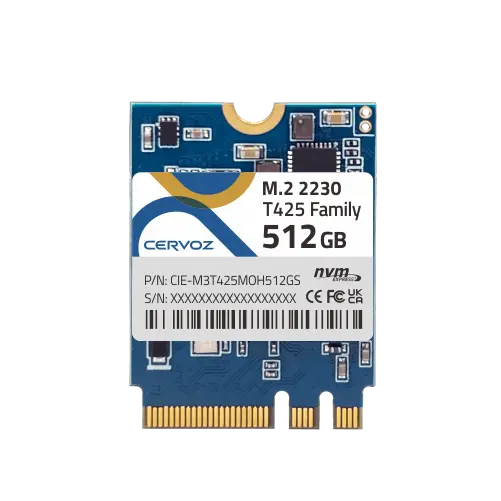

Industrial M.2 2230 (A+E key) Embedded Module - T425
Features
- Compliant with PCIe Gen3x2 interface
- Compliance: NVMe 1.3/ PCI Express Base 3.1
- Connector: M.2 A+E key
- 3D TLC flash memory
- Capacity: 64GB/ 128GB/ 512GB
- End-to-End data protection
- SLC write cache technology
- Thermal throttling technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
Cervoz Industrial M.2 2230 Embedded Module T425 family is a Solid State Flash Disk product that is in compliance with the M.2 and PCIe Gen3x2 standards. M.2 2230 T425 family fits in any M.2 2230 (A+E) sockets in a PC or motherboard; it can be used for both booting and storage purposes.
T425 family uses SSD grade quality 3D TLC flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability.
T425 family offers stable performance and reliability; the product family is an ideal choice for an ultra-compact fanless PC that demands exceptional computational capabilities. Moreover, it offers an effective solution for expanding storage capacity when storage falls short.
T425 family uses SSD grade quality 3D TLC flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability.
T425 family offers stable performance and reliability; the product family is an ideal choice for an ultra-compact fanless PC that demands exceptional computational capabilities. Moreover, it offers an effective solution for expanding storage capacity when storage falls short.
Series
Titan Series (TLC)
Form Factor
M.2 2230
Interface
PCIe Gen3x2
Connector
M.2 2230 (A+E)
NAND Flash Type
3D TLC
Capacity
64GB/ 128GB/ 512GB
Dimension (LxWxH/mm)
30.00 x 22.00 x 3.50
Sequential Read
up to 815MB/s
Sequential Write
up to 760MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
64GB : 109, 128GB : 219, 512GB : 875
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 2500mW, Idle mode: < 530mW
Specialty Technology
End-to-End data protection, SLC write cache technology, Thermal throttling technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
---|---|---|
CIE-M3T425MLF064GS | N/A | 64GB |
CIE-M3T425MMF128GS | CIE-M3T425MMF128G W | 128GB |
CIE-M3T425MOF512GS | CIE-M3T425MOF512G W | 512GB |
Date | Document Type | Capacity |
---|---|---|
2023.09.25 | Cervoz_Industrial_Embedded_Module_M.2 2230_T425_Datasheet_Rev1.1 | 0.93 MB |
