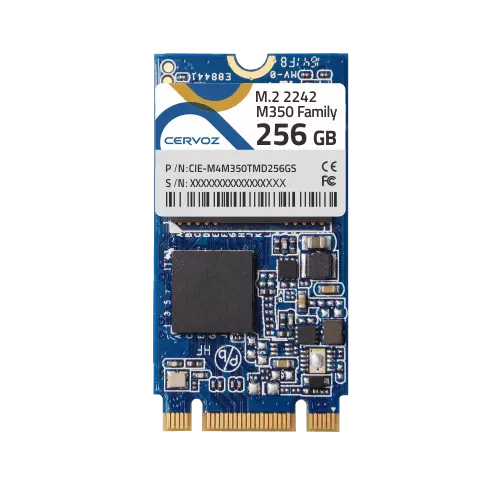

M350 Family

Industrial M.2 2242 Embedded Module

Features

  • Compliant with SATA III 6.0Gb/s
  • MLC NAND flash memory
  • Capacity: 16GB ~ 256GB
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
  • Included standard & wide temp. range
Cervoz Industrial M.2 2242 Embedded Module M350 family is a Solid State Flash Disk product that is in compliance with the M.2 and SATA III standards. M.2 2242 M350 family fits in any M.2 2242 sockets in a PC or motherboard; it can be used for both booting and storage purposes.

M350 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Toshiba. This product includes both standard temperature range and wide temperature range options with various capacities to choose from.

M350 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.





Series
Momentum Series (MLC)
Form Factor
M.2 2242
Interface
SATA III 6.0Gb/s
Connector
M.2 (B+M)
NAND Flash Type
MLC
Capacity
16GB ~ 256GB
Dimension (LxWxH/mm)
42.00 x 22.00 x 3.75
Sequential Read
up to 475MB/s
Sequential Write
up to 420MB/s
ECC Scheme
LDPC
MTBF
>2,000,000 hours
Terabyte Written (TBW)
16GB : 15.6, 32GB : 31, 64GB : 63, 128GB : 125, 256GB : 250
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 1535mW, Idle mode: < 260mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
Standard Temp. (0°C ~ 70°C) Wide Temp. (-40°C ~ 85°C) Capacity
CIE-M4M350TJC016GS CIE-M4M350TJC016GW 16GB
CIE-M4M350TJC032GS CIE-M4M350TJC032GW 32GB
CIE-M4M350TLD064GS CIE-M4M350TLD064GW 64GB
CIE-M4M350TLD128GS CIE-M4M350TLD128GW 128GB
CIE-M4M350TMD256GS CIE-M4M350TMD256GW 256GB
Date Document Type Capacity
2022.07.04 Industrial_Embedded_Module_M.2 2242_M350_Datasheet_Rev1.1 1.02 MB
