Industrial SATA Disk 7pin Horizontal Left Embedded Module

Features

  • Compliant with SATA III 6.0Gb/s
  • 3D TLC NAND flash memory
  • Capacity: 64GB ~ 256GB
  • End-to-End data protection
  • SLC write cache technology
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
  • Included standard & wide temp. range

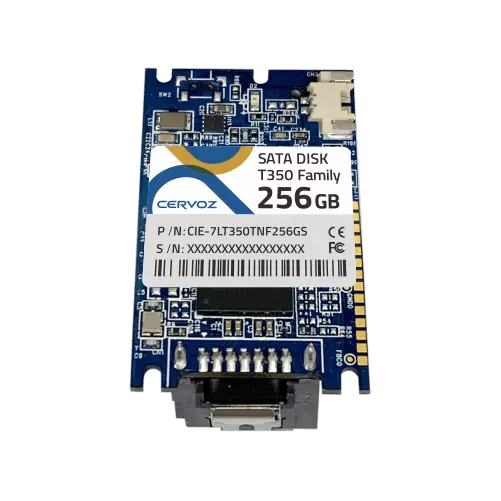

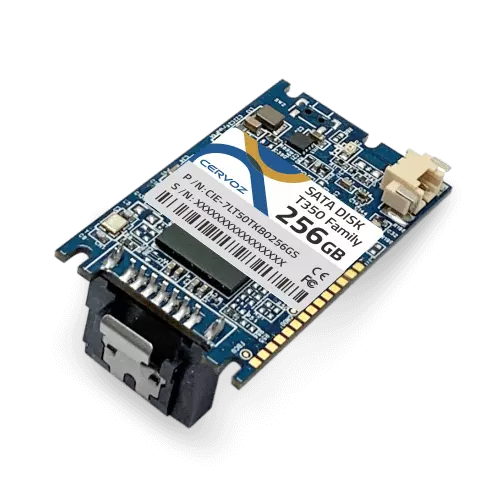

Cervoz Industrial SATA Disk 7pin Horizontal Left Embedded Module T350 is a Solid State Flash Disk product that is in compliance with the SATA III standards. The SATA Disk 7pin Horizontal Left Embedded Module T350 is in low profile form factor and fits in any SATA sockets internally of a PC or on a motherboard; it can be used for both booting or storage purposes.

T350 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Kioxia (Toshiba). Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.

T350 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.





Series
Titan Series (TLC)
Form Factor
SATA Disk 7pin Horizontal Left
Interface
SATA III 6.0Gb/s
Connector
SATA (7pin)
NAND Flash Type
3D TLC
Capacity
64GB ~ 256GB
Dimension (LxWxH/mm)
37.50 x 22.00 x 16.00
Sequential Read
up to 550MB/s
Sequential Write
up to 450MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
64GB : 94, 128GB : 188, 256GB : 375
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: < 1600mW, Idle mode: < 350mW
Specialty Technology
End-to-End data protection, SLC write cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
Standard Temp. (0°C ~ 70°C) Wide Temp. (-40°C ~ 85°C) Capacity
CIE-7LT350TLF064GS CIE-7LT350TLF064GW 64GB
CIE-7LT350TMF128GS CIE-7LT350TMF128GW 128GB
CIE-7LT350TNF256GS CIE-7LT350TNF256GW 256GB
Date Document Type Capacity
2022.12.30 Cervoz_Industrial_Embedded_Module_SATA_Disk_7pin_Horizontal_Left_T350_Datasheet_Rev1.1 0.94 MB
