R336 Family

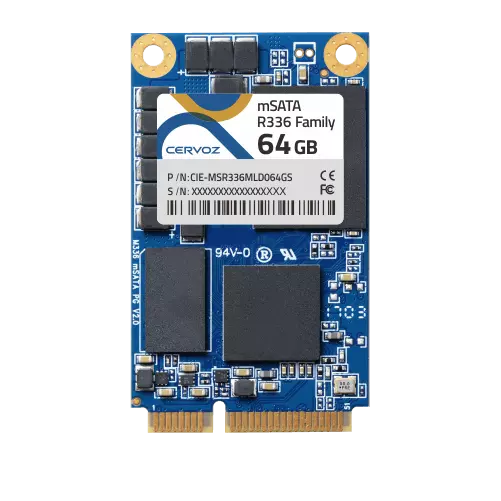

Industrial mSATA Embedded Module - R336
Features
- Compliant with SATA III 6.0Gb/s
- RO-MLC technology
- Capacity: 16GB ~ 64GB
- Powerguard Function(Power Loss Protection)
- With DRAM Buffer
- Operating as boot disk
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Cervoz Industrial mSATA Embedded Module R336 family is a Solid State Disk product that is in compliance with the mSATA form factor and SATA III standards. mSATA R336 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.
R336 family uses preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron and utilizes our “Reliability Optimized-MLC (RO-MLC) Technology”. We adopt specialized firmware to control MLC NAND flash which only uses the strong pages of MLC NAND as storage; the technology is manipulated at the block level, and with each block's capacity halved by treating it as SLC. This product includes various capacities to choose from.
R336 family offers high performance with reliability and endurance, as well as a remarkable price-performance ratio, ideal for applications in harsh environments. Industrial PC/Embedded PC, Factory Automation, Transportation, Information & Entertainment and Server & Cloud Computing all benefit from this superior reliability and cost-effectiveness.
R336 family uses preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron and utilizes our “Reliability Optimized-MLC (RO-MLC) Technology”. We adopt specialized firmware to control MLC NAND flash which only uses the strong pages of MLC NAND as storage; the technology is manipulated at the block level, and with each block's capacity halved by treating it as SLC. This product includes various capacities to choose from.
R336 family offers high performance with reliability and endurance, as well as a remarkable price-performance ratio, ideal for applications in harsh environments. Industrial PC/Embedded PC, Factory Automation, Transportation, Information & Entertainment and Server & Cloud Computing all benefit from this superior reliability and cost-effectiveness.
Series
Reliance Series (RO-MLC)
Form Factor
mSATA
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
3D MLC(Controlled by Reliability Optimized-MLC Technology)
Capacity
16GB ~ 64GB
Dimension (LxWxH/mm)
50.95 x 30.00 x 3.90
Sequential Read
up to 495MB/s
Sequential Write
up to 440MB/s
ECC Scheme
up to 66bits / 1K Byte
MTBF
>3,000,000 hours
Terabyte Written (TBW)
16GB : 130.2, 32GB : 260.4, 64GB : 520.8
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 1970mW, Idle mode: < 375mW, DEVSLP mode: < 45mW
With DRAM Buffer
✓
Powerguard
✓
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-MSR336MKD016GS | CIE-MSR336MKD016GW | 16GB |
| CIE-MSR336MLD032GS | CIE-MSR336MLD032GW | 32GB |
| CIE-MSR336MLD064GS | CIE-MSR336MLD064GW | 64GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.07.04 | Industrial_Embedded_Module_mSATA_R336_Datasheet_Rev2.1 | 1.12 MB |
