T380 Family

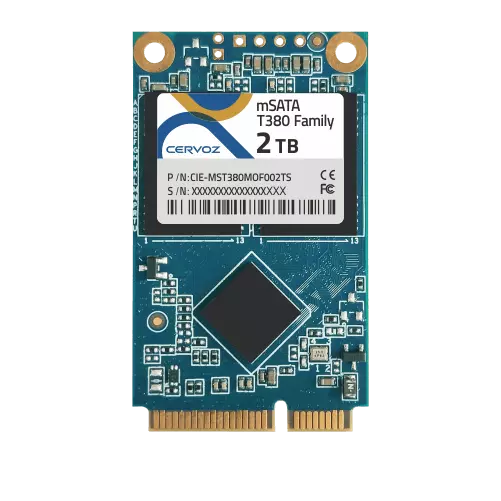

Industrial mSATA Embedded Module - T380
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 64GB ~ 2TB
- End-to-End data protection
- SLC write cache technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Cervoz Industrial mSATA Embedded Module T380 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA T380 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.
T380 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
T380 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Series
Titan Series (TLC)
Form Factor
mSATA
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
3D TLC
Capacity
64GB ~ 2TB
Dimension (LxWxH/mm)
50.80 x 29.85 x 4.00
Sequential Read
up to 560MB/s
Sequential Write
up to 525MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
64GB : 109, 128GB : 219, 256GB : 438, 512GB : 875, 1TB : 1750, 2TB : 3500
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 1475mW, Idle mode: < 250mW
Specialty Technology
End-to-End data protection, SLC write cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-MST380MLF064GS | CIE-MST380MLF064GW | 64GB |
| CIE-MST380MMF128GS | CIE-MST380MMF128GW | 128GB |
| CIE-MST380MMF256GS | CIE-MST380MMF256GW | 256GB |
| CIE-MST380MOF512GS | CIE-MST380MOF512GW | 512GB |
| CIE-MST380MOF001TS | CIE-MST380MOF001TW | 1TB |
| CIE-MST380MOF002TS | CIE-MST380MOF002TW | 2TB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.12.30 | Cervoz_Industrial_Embedded_Module_mSATA_T380_Datasheet_Rev 1.1 | 0.93 MB |
