MEC-CAN-2802i
Industrial M.2 PCIe Expansion Card
Features
- CAN bus 2.0B backward compatible with 2.0A
- Compliant with ISO 11898
- Support baud rate 10/20/50/100/ 125/250/500/800/1000K
- Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Support Card ID and Silent mode setting by switch
- Support port to computer isolation 2.5kV

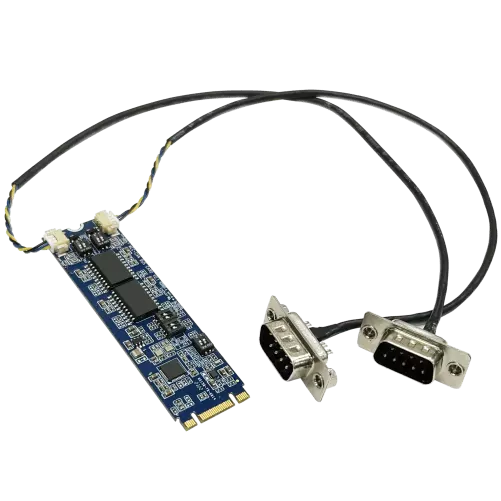

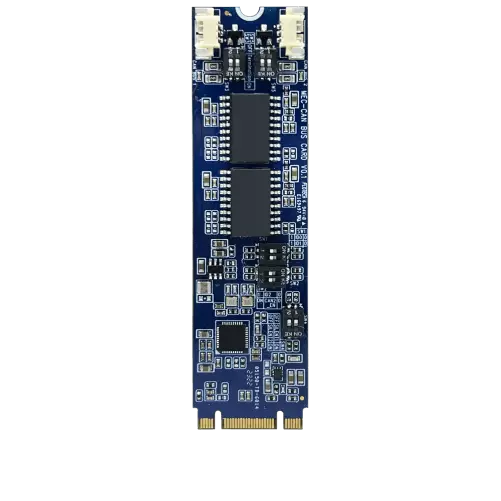

MEC-CAN-2802i is a dual CAN bus module for embedded PC. The card follows the M.2 standard which is compliant with PCI Express x 1 classification and M.2 form factor. This board fits in any host computer that has M.2 slots.
MEC-CAN-2802i provides two DB9 connectors that come with 11898-1 and 11898-2 layer protocol support of CAN bus 2.0A/B. The wide operating temperature and 2.5 kV isolation make MEC-CAN-2802i suitable for use on harsh industrial environments.
MEC-CAN-2802i is designed with flexibilities for many different application and accessories (bracket and DB9 cable) are included in the standard package.
Top Performance
MEC-CAN-2802i provides two DB9 connectors that come with 11898-1 and 11898-2 layer protocol support of CAN bus 2.0A/B. The wide operating temperature and 2.5 kV isolation make MEC-CAN-2802i suitable for use on harsh industrial environments.
High Usability
MEC-CAN-2802i is designed with flexibilities for many different application and accessories (bracket and DB9 cable) are included in the standard package.
Solution
CAN Bus
Form Factor
M.2 (B+M key) 2280
Interface
CAN bus x 2 (DB9 male)
PCI-Express Revision
PCI-Express Base Specification Rev 2.0
Electromechanical Revision
PCI-Express M.2 Electromechanical Rev.1.1
Frequency Range
24 MHz
Dimensions (WxL/ mm)
22.00 x 80.00
Controllers
F81601
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
ESD Protection
15 kV on board
Baud Rate
up to 1Mbps
Power Consumption
400 mA@3.3V
Operation Temp.
-40°C ~ +85°C
Storage Temp.
–40°C ~ 95°C
Isolation
✓
Driver Support
Win 7, Win 8, Win 10, Win 11, Linux Kernel 3.4 and above
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-CAN-2802i | M.2 2280 dual isolated CAN bus 2.0B Board (-40℃~+85℃) |
