S131 Family

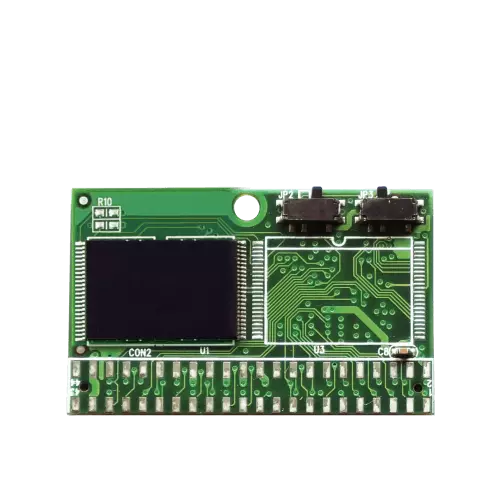

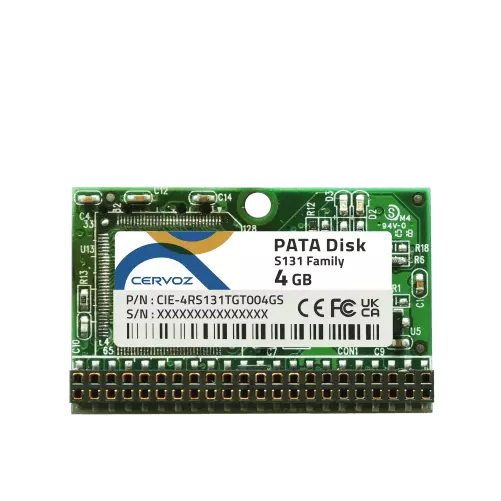

Industrial PATA Disk 44pin Horizontal Right Embedded Module
Features
- Compliant with ATA command set
- SLC NAND flash memory
- Capacity: 128MB ~ 4GB
- Operating as boot disk
- Included standard & wide temp. range
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T.
Cervoz Industrial PATA Disk 44pin Horizontal Right Embedded Module S131 family is a Solid State Disk product that is in compliance with the PATA standards. The PATA Disk 44pin Horizontal Right Embedded Module S131 family is in low profile form factor and fits in any 44pin PATA sockets internally of a PC or on a motherboard; it can be used for both booting or storage purposes.
S131 family uses superior quality, preselected single-level cell (SLC) NAND flash memory from the industry leading manufacturer Kioxia(Toshiba). This product includes both standard temperature range and wide temperature range options with various capacities to choose from.
S131 family offers outstanding performance and reliability, ideal for extreme applications in mission critical environments. Factory Automation, Transportation, Networking and Video Surveillance all benefit from this superior read/write endurance and data retention.
S131 family uses superior quality, preselected single-level cell (SLC) NAND flash memory from the industry leading manufacturer Kioxia(Toshiba). This product includes both standard temperature range and wide temperature range options with various capacities to choose from.
S131 family offers outstanding performance and reliability, ideal for extreme applications in mission critical environments. Factory Automation, Transportation, Networking and Video Surveillance all benefit from this superior read/write endurance and data retention.
Series
Supreme Series (SLC)
Form Factor
PATA Disk 44pin Horizontal Right
Interface
PATA
Connector
PATA (44pin)
NAND Flash Type
SLC
Capacity
128MB ~ 4GB
Dimension (LxWxH/mm)
44.00 x 28.00 x 5.80
Sequential Read
up to 40MB/s
Sequential Write
up to 30MB/s
ECC Scheme
up to 24bits / 1K Byte
MTBF
>3,000,000 hours
Terabyte Written (TBW)
128MB : 2, 256MB : 5, 512MB : 10, 1GB : 20, 2GB : 39, 4GB : 78
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: <300mW, Idle mode: < 11.5mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-4RS131TCT128MS | CIE-4RS131TCT128MW | 128MB |
| CIE-4RS131TDT256MS | CIE-4RS131TDT256MW | 256MB |
| CIE-4RS131TET512MS | CIE-4RS131TET512MW | 512MB |
| CIE-4RS131TFT001GS | CIE-4RS131TFT001GW | 1GB |
| CIE-4RS131TGT002GS | CIE-4RS131TGT002GW | 2GB |
| CIE-4RS131TGT004GS | CIE-4RS131TGT004GW | 4GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2023.08.17 | Cervoz_Industrial_Embedded_Module_PATA_Disk_44pin_Horizontal_Right_S131_Datasheet_Rev1.0 | 1.01 MB |
