T445 Family

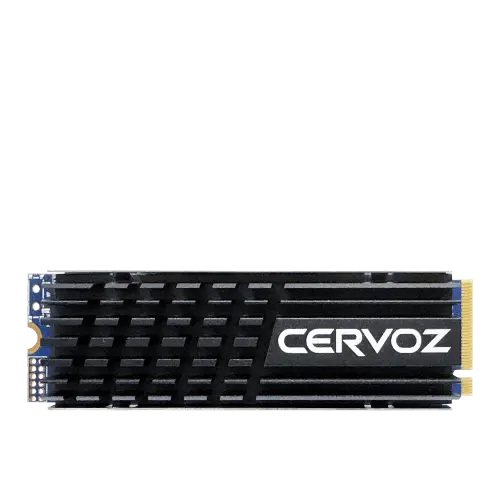

Industrial M.2 2280 Embedded Module - T445
Features
- Compliant with PCIe Gen 4x4 interface
- Compliance: NVMe 2.0 / PCI Express Base 4.0
- 3D TLC flash memory
- Capacity: 256GB ~ 2TB
- Single-Sided Design
- Write Protect Function (Optional)
- End-to-End data protection
- SLC write cache technology
- Dynamic Thermal throttling
- Product includes Standard & Wide Temp. range
Cervoz Industrial M.2 2280 Embedded Module T445 family is a Solid State Flash Disk product that is in compliance with the M.2 and PCIe Gen4x4 standards. The M.2 2280 T445 family is designed for compact embedded systems that cannot accommodate chunky double-sided SSDs. Its single-sided design features slimmer dimensions, allowing the drive to fit into any M.2 2280(M) sockets found in slim PCs or ultra-thin motherboards. The M.2 2280 T445 family can be used for both booting and storage purposes.

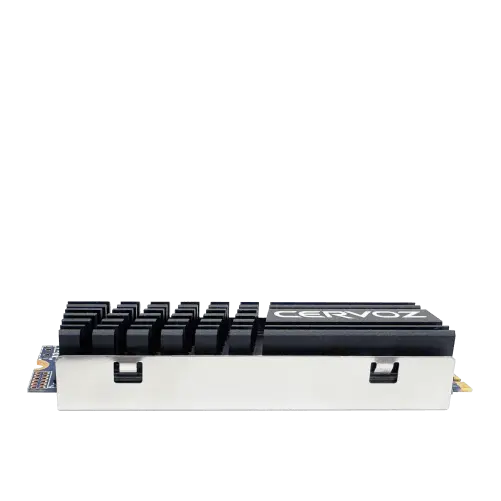

The T445 family uses SSD grade quality 3D TLC flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. Meanwhile, M.2 2280 T445 family features a DRAM-less design to achieve lower power consumption; along with a heatsink designed for effective heat dissipation to maintain the best performance. This product includes various capacities to choose from.
The T445 family offers outstanding performance and reliability; the product family is a perfect solution for multi-tasking capabilities and heavy work-load industrial applications.
The T445 family uses SSD grade quality 3D TLC flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. Meanwhile, M.2 2280 T445 family features a DRAM-less design to achieve lower power consumption; along with a heatsink designed for effective heat dissipation to maintain the best performance. This product includes various capacities to choose from.
The T445 family offers outstanding performance and reliability; the product family is a perfect solution for multi-tasking capabilities and heavy work-load industrial applications.
Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
PCIe Gen4x4
Connector
M.2 (M)
NAND Flash Type
3D TLC
Capacity
256GB/512GB/1TB/2TB
Dimension (LxWxH/mm)
80.00 x 22.00 x 2.15
Sequential Read
up to 5,080MB/s
Sequential Write
up to 4,740MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
256GB : 469, 512GB : 938, 1TB : 1875, 2TB : 3750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 5130mW, Idle mode: < 805mW
Specialty Technology
Single-Sided Design, Write Protect Function (Optional), End-to-End data protection, SLC write cache technology, Dynamic Thermal throttling
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-M8T445MMH256GS | CIE-M8T445MMH256GW | 256GB |
| CIE-M8T445MNH512GS | CIE-M8T445MNH512GW | 512GB |
| CIE-M8T445MNH001TS | CIE-M8T445MNH001TW | 1TB |
| CIE-M8T445MOH002TS | CIE-M8T445MOH002TW | 2TB |
| Date | Document Type | Capacity |
|---|---|---|
| 2024.11.06 | Cervoz_Industrial_Embedded_Module_M.2 2280_T445_Datasheet_Rev1.0 | 1.05 MB |
