T387 Family

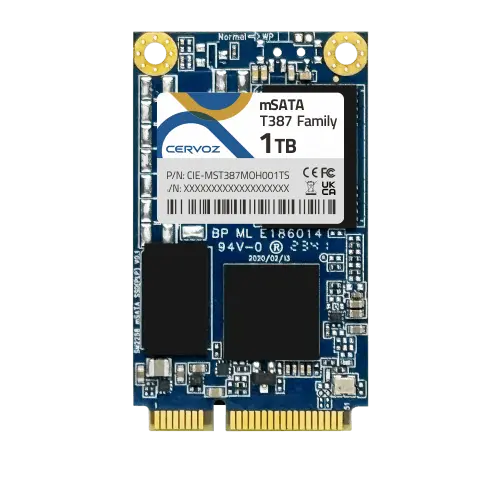

Industrial mSATA Embedded Module - T387
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 256GB ~ 1TB
- Support AES 256-bit Encryption
- With DRAM Buffer
- End-to-End data protection
- Operating as boot disk
- Product includes Standard Temperature range & Wide Temperature range
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
Cervoz Industrial mSATA Embedded Module T387 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA T387 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.
T387 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T387 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
T387 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T387 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Series
Titan Series (TLC)
Form Factor
mSATA
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
3D TLC NAND
Capacity
256GB/512GB/1TB
Dimension (LxWxH/mm)
50.80 x 29.85 x 4.00
Sequential Read
up to 560MB/s
Sequential Write
up to 410MB/s
ECC Scheme
Applies the LDPC
MTBF
>3,000,000 hours
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 2495mW, Idle mode: < 500mW
With DRAM Buffer
✓
Specialty Technology
Support AES 256-bit Encryption, End-to-End data protection, Shock resistance and anti-vibration
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-MST387MNH256GS | CIE-MST387MNH256GW | 256GB |
| CIE-MST387MOH512GS | CIE-MST387MOH512GW | 512GB |
| CIE-MST387MOH001TS | CIE-MST387MOH001TW | 1TB |
| Date | Document Type | File Size |
|---|---|---|
| 2025.08.15 | Cervoz_Industrial_Embedded_Module_mSATA_T387_Datasheet_Rev 1.0 | 0.97 MB |
