T386 Family

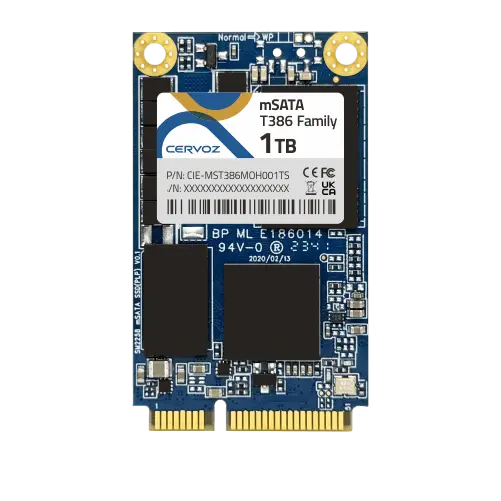

Industrial mSATA Embedded Module - T386
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 256GB ~ 1TB
- Powerguard Function (Power Loss Protection)
- Support AES 256-bit Encryption
- With DRAM Buffer
- End-to-End data protection
- Operating as boot disk
- Product includes Standard Temperature range & Wide Temperature range
- Low power consumption
Cervoz Industrial mSATA Embedded Module T386 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA T386 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes. In addition, T386 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges. With this special design, mSATA is constantly charging the tantalum capacitors with 12V power during its operation.
T386 family uses SSD grade quality 3D TLC NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
T386 family uses SSD grade quality 3D TLC NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
Series
Titan Series (TLC)
Form Factor
mSATA
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
3D TLC NAND
Capacity
256GB/512GB/1TB
Dimension (LxWxH/mm)
50.95 x 30.00 x 3.90
Sequential Read
up to 560MB/s
Sequential Write
up to 415MB/s
ECC Scheme
Applies the LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
256GB : 469, 512GB : 938, 1TB : 1875
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 2495mW, Idle mode: < 500mW
With DRAM Buffer
✓
Powerguard
✓
Specialty Technology
Support AES 256-bit Encryption, End-to-End data protection, Shock resistance and anti-vibration
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-MST386MNH256GS | CIE-MST386MNH256GW | 256GB |
| CIE-MST386MOH512GS | CIE-MST386MOH512GW | 512GB |
| CIE-MST386MOH001TS | CIE-MST386MOH001TW | 1TB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the SATA flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2025.08.15 | Cervoz_Industrial_Embedded_Module_mSATA_T386_Datasheet_Rev 1.0 | 1.15 MB |
