T383 Family

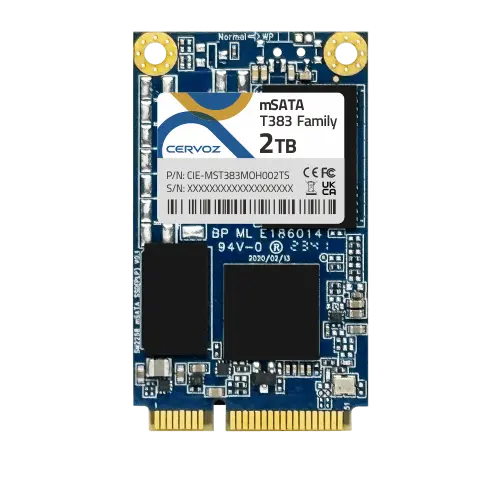

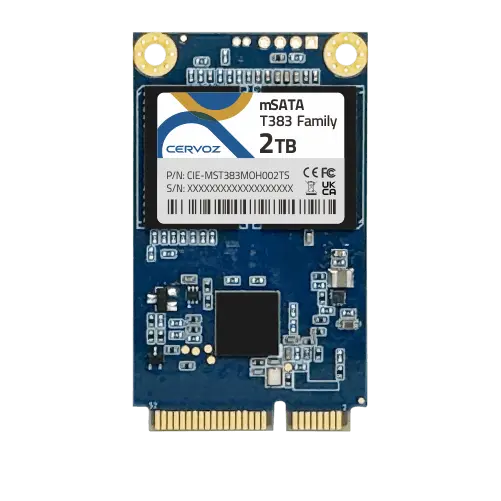

Industrial mSATA Embedded Module - T383
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 128GB ~ 2TB
- End-to-End data protection
- Dynamic SLC cache technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Cervoz Industrial mSATA Embedded Module T383 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA T383 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.
T383 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T383 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
T383 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T383 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Series
Titan Series (TLC)
Form Factor
mSATA
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
3D TLC NAND
Capacity
128GB/256GB/512GB/1TB/2TB
Dimension (LxWxH/mm)
50.95 x 30.00 x 3.60
Sequential Read
up to 560MB/s
Sequential Write
up to 510MB/s
ECC Scheme
Applies the LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
128GB : 234, 256GB : 469, 512GB : 938, 1TB : 1875, 2TB : 3750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 970mW, Idle mode: < 410mW
Specialty Technology
End-to-End data protection, Dynamic SLC cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Capacity |
|---|---|
| CIE-MST383MMH128GS | 128GB |
| CIE-MST383MNH256GS | 256GB |
| CIE-MST383MNH512GS | 512GB |
| CIE-MST383MOH001TS | 1TB |
| CIE-MST383MOH002TS | 2TB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the SATA flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2025.09.30 | Cervoz_Industrial_Embedded_Module_mSATA_T383_Datasheet_Rev1.0 | 0.96 MB |
