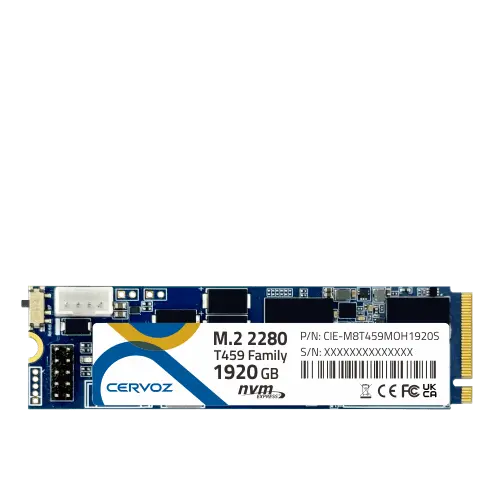

Industrial M.2 2280 Embedded Module - T459
Features
- Compliant with PCIe Gen 4x4 interface
- Compliance: NVMe 2.0/ PCI Express Base 4.0
- 3D TLC flash memory
- Capacity: 120GB ~ 1920GB
- MIL-STD-810H Compliant
- Multi-Layered Data Security (Write Protection/Quick Erase/ Physical Destroy)
- Over-provisioning technology
- Safeguard & Circuitguard
- Anti-Vibration Fill
Engineered for mission-critical and rugged applications, the Cervoz Military-Grade M.2 2280 SSD T459 Family delivers high reliability and operational stability for field deployments. Compliant with MIL-STD-810H standards, it is designed to withstand shock, vibration, and harsh environmental conditions commonly found in defense and industrial systems.
To strengthen data security, the T459 Family integrates hardware-based protection features, including Write Protect, Quick Erase, and Physical Destroy, helping prevent unauthorized access, data leakage, and tampering in critical operations.
The T459 Family leverages Over-Provisioning, Dynamic SLC Cache, and advanced wear-leveling algorithms to reduce NAND wear and improve sustained performance. This architecture extends service life and delivers up to 35% higher endurance for write-intensive workloads.
Supporting PCIe Gen 4x4 NVMe interface in an M.2 2280 form factor, the T459 Family provides high-speed data transfer with optimized power efficiency. Built with industrial-grade NAND flash and available in multiple capacities, it is suitable for defense, aerospace, transportation, and marine applications requiring secure and reliable storage.
To strengthen data security, the T459 Family integrates hardware-based protection features, including Write Protect, Quick Erase, and Physical Destroy, helping prevent unauthorized access, data leakage, and tampering in critical operations.
The T459 Family leverages Over-Provisioning, Dynamic SLC Cache, and advanced wear-leveling algorithms to reduce NAND wear and improve sustained performance. This architecture extends service life and delivers up to 35% higher endurance for write-intensive workloads.
Supporting PCIe Gen 4x4 NVMe interface in an M.2 2280 form factor, the T459 Family provides high-speed data transfer with optimized power efficiency. Built with industrial-grade NAND flash and available in multiple capacities, it is suitable for defense, aerospace, transportation, and marine applications requiring secure and reliable storage.
Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
PCIe Gen 4x4
Connector
M.2 2280 (M)
NAND Flash Type
3D TLC
Capacity
120GB/ 240GB/ 480GB/ 960GB/ 1920GB
Dimension (LxWxH/mm)
80.00 x 22.00 x 9.50
Sequential Read
up to 5,085MB/s
Sequential Write
up to 4,765MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
120GB : 270, 240GB : 541, 480GB : 1082, 960GB : 2163, 1920GB : 4327
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 5130mW, Idle mode: < 805mW
MIL-STD-810H Compliant
✓
Specialty Technology
MIL-STD-810H Compliant, Multi-Layered Data Security (Write Protection/Quick Erase/ Physical Destroy), Over-provisioning technology
Conformal Coating
Optional
Anti-Vibration Fill
✓
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-M8T459MMH120GS | CIE-M8T459MMH120GW | 120GB |
| CIE-M8T459MMH240GS | CIE-M8T459MMH240GW | 240GB |
| CIE-M8T459MNH240GS | CIE-M8T459MNH240GW | 240GB* |
| CIE-M8T459MNH480GS | CIE-M8T459MNH480GW | 480GB |
| CIE-M8T459MOH480GS | CIE-M8T459MOH480GW | 480GB* |
| CIE-M8T459MOH960GS | CIE-M8T459MOH960GW | 960GB |
| CIE-M8T459MOH1920S | CIE-M8T459MOH1920W | 1920GB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2026.06.09 | Cervoz_Industrial_Embedded_Module_M.2 2280_T459_Datasheet_Rev1.0 | 1.08 MB |
