T449 Family

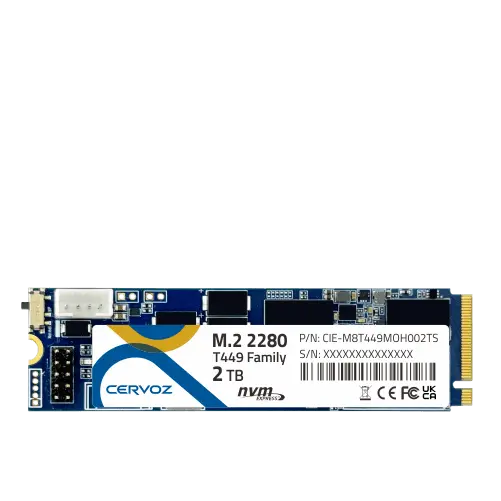

Industrial M.2 2280 Embedded Module - T449
Features
- Compliant with PCIe Gen 4x4 interface
- Compliance: NVMe 2.0/ PCI Express Base 4.0
- 3D TLC flash memory
- Capacity: 128GB ~ 2TB
- MIL-STD-810H Compliant
- Multi-Layered Data Security (Write Protection/ Quick Erase/ Physical Destroy)
- Conformal Coating (Optional)
- Anti-Vibration Fill
- End-to-End data protection
Cervoz Military Grade M.2 2280 SSD T449 Family delivers reliable performance for mission-critical and rugged applications. Built to comply with MIL-STD-810H, it ensures stable operation under shock and vibration in harsh environments.
The series features advanced data protection including Write Protection, Quick Erase, and Physical Destroy functions, helping secure sensitive information during deployment and system operation.
Supporting PCIe Gen 4x4 NVMe interface, the T449 Family provides high-speed data transfer and efficient power usage for embedded systems. It is built with industrial-grade NAND flash and available in multiple capacities for design flexibility.
The T449 Family is suitable for defense, aerospace, transportation, marine, and industrial applications.
The series features advanced data protection including Write Protection, Quick Erase, and Physical Destroy functions, helping secure sensitive information during deployment and system operation.
Supporting PCIe Gen 4x4 NVMe interface, the T449 Family provides high-speed data transfer and efficient power usage for embedded systems. It is built with industrial-grade NAND flash and available in multiple capacities for design flexibility.
The T449 Family is suitable for defense, aerospace, transportation, marine, and industrial applications.
Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
PCIe Gen 4x4
Connector
M.2 2280 (M)
NAND Flash Type
3D TLC
Capacity
128GB/ 256GB/ 512GB/ 1TB/ 2TB
Dimension (LxWxH/mm)
80.00 x 22.00 x 9.50
Sequential Read
up to 5,085MB/s
Sequential Write
up to 4,765MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
128GB : 234, 256GB : 469, 512GB : 938, 1TB : 1875, 2TB : 3750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 5130mW, Idle mode: < 805mW
MIL-STD-810H Compliant
✓
Specialty Technology
MIL-STD-810H Compliant, Multi-Layered Data Security (Write Protection/ Quick Erase/ Physical Destroy)
Conformal Coating
Optional
Anti-Vibration Fill
✓
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-M8T449MMH128GS | CIE-M8T449MMH128GW | 128GB |
| CIE-M8T449MMH256GS | CIE-M8T449MMH256GW | 256GB |
| CIE-M8T449MNH256GS | CIE-M8T449MNH256GW | 256GB* |
| CIE-M8T449MNH512GS | CIE-M8T449MNH512GW | 512GB |
| CIE-M8T449MOH512GS | CIE-M8T449MOH512GW | 512GB* |
| CIE-M8T449MOH001TS | CIE-M8T449MOH001TW | 1TB |
| CIE-M8T449MOH002TS | CIE-M8T449MOH002TW | 2TB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2026.06.09 | Cervoz_Industrial_Embedded_Module_M.2 2280_T449_Datasheet_Rev1.0 | 1.07 MB |
