T387 Family

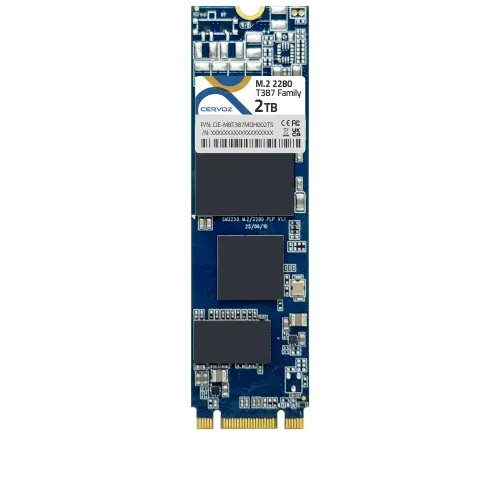

Industrial M.2 2280 Embedded Module - T387
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 256GB ~ 2TB
- Support AES 256-bit Encryption
- With DRAM Buffer
- End-to-End data protection
- Operating as boot disk
- Product includes Standard Temperature range & Wide Temperature range
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
Cervoz Industrial M.2 2280 Embedded Module T387 family is a Solid State Flash Disk product that is in compliance with the M.2 and SATA III standards. M.2 2280 T387 family fits in any M.2 2280 sockets in a PC or motherboard; it can be used for both booting and storage purposes.
T387 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T387 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
T387 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T387 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
SATA III 6.0Gb/s
Connector
M.2 (B+M)
NAND Flash Type
3D TLC NAND
Capacity
256GB ~ 2TB
Dimension (LxWxH/mm)
80.00 x 22.00 x 3.50
Sequential Read
up to 560MB/s
Sequential Write
up to 425MB/s
ECC Scheme
Applies the LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
256GB : 469, 512GB : 938, 1TB : 1875, 2TB : 3750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
+3.3V DC ± 5%
Power Consumption
Active mode: < 2550mW, Idle mode: < 550mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-M8T387MNH256GS | CIE-M8T387MNH256GW | 256GB |
| CIE-M8T387MOH512GS | CIE-M8T387MOH512GW | 512GB |
| CIE-M8T387MOH001TS | CIE-M8T387MOH001TW | 1TB |
| CIE-M8T387MOH002TS | CIE-M8T387MOH002TW | 2TB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the SATA flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2025.08.26 | Cervoz_Industrial_Embedded_Module_M.2 2280_T387_Datasheet_Rev 1.0 | 1.03 MB |
