M339 Family

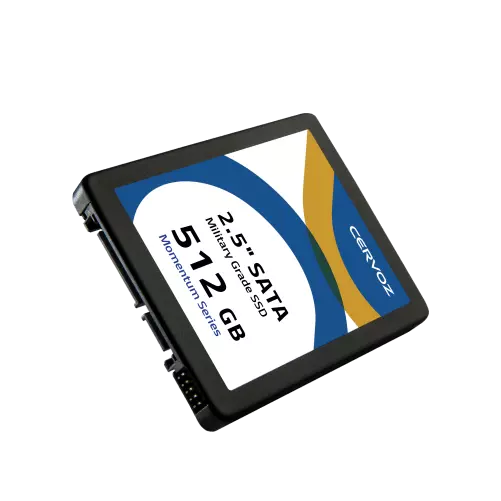

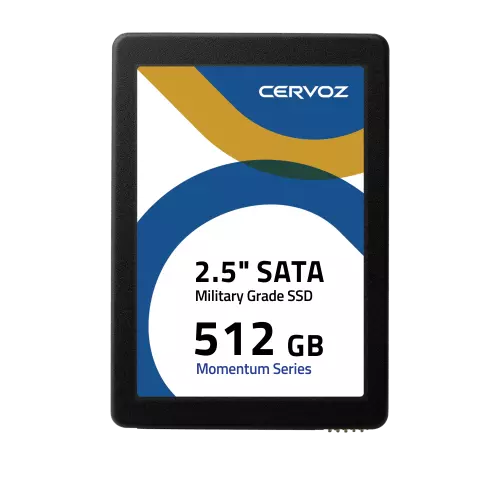

Military-Grade SSD - M339
Features
- Compliant with SATA III 6.0Gb/s
- MLC NAND flash memory
- Capacity: 32GB ~ 512GB
- MIL-STD-810G Compliant
- Powerguard Function (Power Loss Protection)
- With DRAM Buffer
- AES 256-bit Encryption
- Multi-Layered Data Security
- Anti-Vibration Fill
- Build-in Thermal Sensor
Defense and Military applications are mission-critical operations, the robust storage is always the first priority. Cervoz Military Grade 2.5" SATA SSD M339 family is compliant with MIL-STD-810G standards, which guarantee the high level of shock and vibration resistance to withstand harsh environment. M339 Family is designed with Multi-layered data protection against information leakage; AES 256-bit encryption algorithm to avoid confidential data exposure. In addition, M339 family has Powerguard function to protect data loss while encountering an improper power failure.
Cervoz Military Grade SSD M339 Family that is in compliance with the 2.5” form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards. M339 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
Cervoz Military Grade SSD is the ideal product for Military, Aerospace, Government system, Financial institution, Marine computer and Railway transport applications.
Cervoz Military Grade SSD M339 Family that is in compliance with the 2.5” form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards. M339 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
Cervoz Military Grade SSD is the ideal product for Military, Aerospace, Government system, Financial institution, Marine computer and Railway transport applications.
Series
Momentum Series (MLC)
Form Factor
2.5 inch
Interface
SATA III 6.0Gb/s
Connector
SATA (7 + 15 pin)
NAND Flash Type
3D MLC
Capacity
32GB ~ 512GB
Dimension (LxWxH/mm)
100.00 x 69.85 x 7.00
Sequential Read
up to 550MB/s
Sequential Write
up to 355MB/s
ECC Scheme
up to 66bits / 1K Byte
MTBF
>3,000,000 hours
Terabyte Written (TBW)
32GB : 31, 64GB : 63, 128GB : 125, 256GB : 250, 512GB : 500
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: < 2250mW, Idle mode: < 625mW
With DRAM Buffer
✓
Powerguard
✓
Specialty Technology
Military Grade Compliant, AES 256-bit Encryption, Multi-Layered Data, Security, Build-in Thermal Sensor
Conformal Coating
Optional
Anti-Vibration Fill
✓
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIS-2SM339MKD032GS | CIS-2SM339MKD032GW | 32GB |
| CIS-2SM339MKD064GS | CIS-2SM339MKD064GW | 64GB |
| CIS-2SM339MKD128GS | CIS-2SM339MKD128GW | 128GB |
| CIS-2SM339MKD256GS | CIS-2SM339MKD256GW | 256GB |
| CIS-2SM339MLD512GS | CIS-2SM339MLD512GW | 512GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.12.30 | Cervoz_Industrial_SSD_2 5_inch_SATA_M339_Datasheet_Rev2.1 | 1.30 MB |
