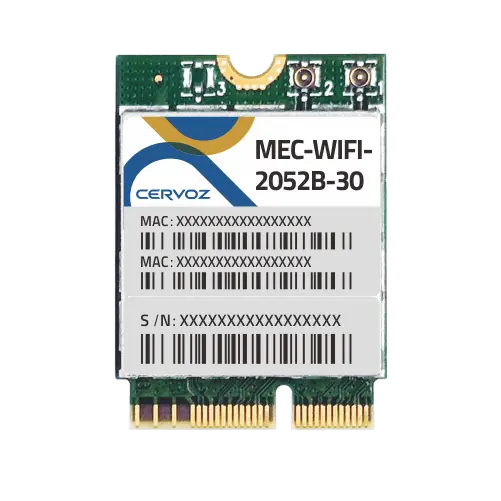

MEC-WIFI-2052B-30

Industrial M.2 PCIe Wi-Fi Expansion Card_2052B-30

Name: MEC-WIFI-2052B-30
Brand: Cervoz – Making Memories for Industry
Rating: 0

Features

M.2 Type 2230 E Key Card
Support 2.4GHz, 5GHz, 6GHz frequency bands
Support 2T2R mode operation on a single band
Support dual-band concurrent operation (2.4GHz + 5GHz/ 6GHz)

Support Multi-Link Operation(MLO), subject to firmware and host support
Channel bandwidth support: 20/40/80/160MHz
Support 802.11be with OFDMA and MU/RU/SU decision path by firmware
Dual-mode BT support: BR/EDR + LE

MEC-WIFI-2052B-30 is a highly integrated triple-band WLAN + Bluetooth combo M.2 Card based on Realtek RTL8922AE Wi-Fi 7 chipset. It combines a 2T2R triple-band WLAN subsystem with a PCI Express interface controller and a Bluetooth v5.4 subsystem with a USB interface controller.

MEC-WIFI-2052B-30 is compatible with IEEE 802.11 a/b/g/n/ac/ax/be standards, delivering a maximum PHY rate of up to 2882Mbps. It supports Bluetooth dual mode and complies with v5.4/v4.2/v2.1 specifications.

MEC-WIFI-2052B-30 provides a complete solution for high-performance integrated wireless and Bluetooth connectivity in devices such as laptops, set-top boxes, and smart TVs.

Solution

Wi-Fi

Form Factor

M.2 2230 (E key)

Interface

WLAN: PCIe 2.1 / Bluetooth: USB2.0

Frequency Range

802.11 a/b/g/n/ac/ax/be + Bluetooth 5.4

Chipset

Realtek RTL8922AE-CG

T/R

2T2R

Dimensions (WxL/ mm)

30.0 x 22.0

Operation Temp.

0°C ~ 70°C

Storage Temp.

– 40 ~ 85℃

Driver Support

Windows 11, Linux

Warranty

1 year

Model No.	Description
MEC-WIFI-2052B-30	WLAN 802.11 a/b/g/n/ac/ax/be 2T2R BT 5.4 M.2 Type 2230 E key (Wi-Fi 7)

Date	Document Type	File Size
2026.02.03	WiFi Solution_MEC-WIFI-2052B-30 _Datasheet_Rev1.0	1.09 MB
2026.01.28	WiFi Solution_MEC-WIFI-2052B-30_Driver_Windows	15.77 MB
