T421 Family

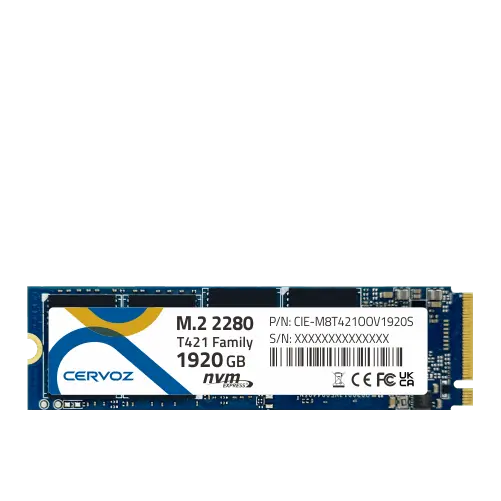

Industrial M.2 2280 Embedded Module - T421
Features
- Compliant with PCIe Gen3x4 interface
- Compliance: NVMe 1.3/ PCI Express Base 3.1
- 3D TLC flash memory
- Capacity: 120GB ~ 1920GB
- Single-Sided Design
- Support AES 256-bit Encryption
- End-to-End data protection
- SLC write cache technology
- Dynamic Thermal throttling
- Operating as boot disk
- Static and dynamic wear leveling
Cervoz Industrial M.2 2280 Embedded Module T421 family is a Solid State Flash Disk product that is in compliance with the M.2 and PCIe Gen3x4 standards. The M.2 2280 T421 family is designed for compact embedded systems that cannot accommodate chunky double-sided SSDs. Its single-sided design features slimmer dimensions, allowing the drive to fit into any M.2 2280(M) sockets found in slim PCs or ultra-thin motherboards. The M.2 2280 T421 family can be used for both booting and storage purposes.
T421 family uses TLC NAND Flash. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T421 family offers stable performance and reliability; the product family is an ideal solution for entry-level capabilities and general industrial applications.
T421 family uses TLC NAND Flash. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T421 family offers stable performance and reliability; the product family is an ideal solution for entry-level capabilities and general industrial applications.
Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Connector
M.2 2280 (M)
NAND Flash Type
3D TLC
Capacity
120GB/ 240GB/ 480GB/ 960GB/ 1920GB
Dimension (LxWxH/mm)
80.00x22.00x2.15
Sequential Read
up to 2485MB/s
Sequential Write
up to 1915MB/s
MTBF
>3,000,000 hours
Terabyte Written (TBW)
120GB : 176, 240GB : 352, 480GB : 703, 960GB : 1406, 1920GB : 2813
Operating Temperature: Standard Temp.
0°C ~ 70°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 3500mW, Idle mode: < 1500mW
Specialty Technology
Single-Sided Design, Support AES 256-bit Encryption, End-to-End data protection, SLC write cache technology, Dynamic Thermal throttling
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Capacity |
|---|---|
| CIE-M8T421OLV120GS | 120GB |
| CIE-M8T421OMV240GS | 240GB |
| CIE-M8T421ONV480GS | 480GB |
| CIE-M8T421ONV960GS | 960GB |
| CIE-M8T421OOV1920S | 1920GB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2026.06.09 | Cervoz_Industrial_Embedded_Module_M.2 2280_T421_Datasheet_Rev1.0 | 0.97 MB |
