Industrial M.2 PCIe CAN Bus Expansion Card_2F14i
Features
- Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5GT/s
- Fully compliant with PCI-Express Base Specification Rev. 2.0
- Meet the Requirements of the ISO 11898-1:2015
- Mixed CAN FD and CAN 2.0A/B mode
- Support baud rate 10/20/50/100/125/250/500/800/1000K
- Support data(BRS) baud rate 1M/2M/4M/5M
- Support CAN message acceptance filter
- Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

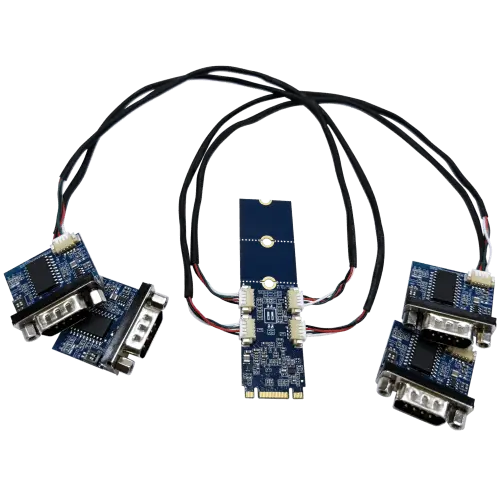

MEC-CAN-2F14i is a quad CAN bus module for embedded PC. The card follows the M.2 standard which is compliant with PCI Express x 1 classification and M.2 form factor. This board fits in any host computer that has M.2 slots.
MEC-CAN-2F14i provides four DB9 connectors that come with 11898-1 and 11898-2 layer protocol support of CAN FD and 2.0A/B. The wide operating temperature and 2.5kV isolation make MEC-CAN-2F14i suitable for use on harsh industrial environments.
MEC-CAN-2F14i is designed with flexibilities for many different application and accessories (daughter board, bracket and cable) are included in the standard package.
Top Performance
MEC-CAN-2F14i provides four DB9 connectors that come with 11898-1 and 11898-2 layer protocol support of CAN FD and 2.0A/B. The wide operating temperature and 2.5kV isolation make MEC-CAN-2F14i suitable for use on harsh industrial environments.
High Usability
MEC-CAN-2F14i is designed with flexibilities for many different application and accessories (daughter board, bracket and cable) are included in the standard package.
Solution
CAN Bus
Form Factor
M.2 2280 (B+M key)
Interface
CAN bus x 4 (DB9 male)
PCI-Express Revision
PCI-Express Base Specification Rev. 2.0
Electromechanical Revision
PCI-Express M.2 Electromechanical Rev. 1.1
Frequency Range
80MHz
Dimensions (WxL/ mm)
22.00 x 42.00 / 22.00 x 60.00 / 22.00 x 80.00
Controllers
F81601A x2
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
Output I/F
CAN FD、CAN 2.0A/B
ESD Protection
15kV on board
Baud Rate
up to 1Mbps
Power Consumption
MAX 3.3V @ 1300mA
Operation Temp.
– 40°C ~ 85°C
Storage Temp.
– 40°C ~ 95°C
Isolation
✓
Driver Support
Win 7, Win 8, Win 10, Win 11, Linux Kernel 3.4 and above
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-CAN-2F02i | M.2 2242/2260/2280 (B+M key) quad isolated CAN bus FD/2.0B board (-40℃~+85℃) |
