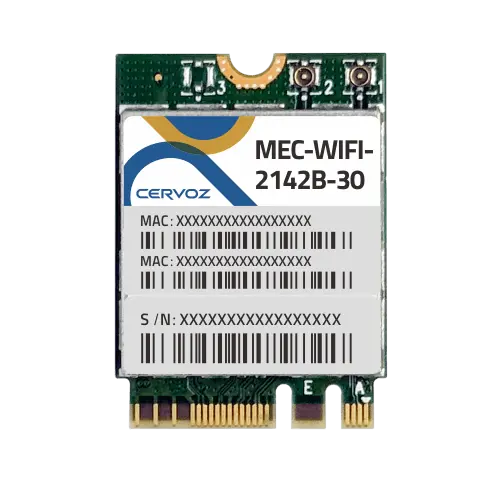

MEC-WIFI-2142B-30
Industrial M.2 PCIe Wi-Fi Expansion Card_2142B-30
Features
- Form factor: M.2 2230 (A‐E Key) type
- IEEE 802.11a/b/g/n/ac/ax WLAN
- Two Transmit and Two Receive paths 20MHz / 40MHz / 80MHz / 160MHz bandwidth transmission
- RoHS compliant
- WLAN supports 2.4GHz /5GHz and 6GHz channel
- Bluetooth: BT 2.1+ EDR/3.0/4.0/4.1/4.2/5.2
- I/O: WLAN: PCIe 2.1, BT: USB 2.0
MEC-WIFI-2142B-30 is a highly integrated single-chip that supports Wi-Fi 6E (802.11ax) solutions with Multi‐user MIMO (Multiple‐Input, Multiple‐Output) with Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth Smart Ready USB interface controller.
MEC-WIFI-2142B-30 standard further improves the 802.11ax network user experience with faster and more reliable Wi-Fi networks that are designed for soaring device densities and high-bandwidth applications such as video streaming, videoconferencing, and voice calls. MEC-WIFI-2142B-30 provides a complete solution for a high-performance integrated wireless and Bluetooth device.
MEC-WIFI-2142B-30 standard further improves the 802.11ax network user experience with faster and more reliable Wi-Fi networks that are designed for soaring device densities and high-bandwidth applications such as video streaming, videoconferencing, and voice calls. MEC-WIFI-2142B-30 provides a complete solution for a high-performance integrated wireless and Bluetooth device.
Solution
Wi-Fi
Form Factor
M.2 2230 (A+E key)
Interface
WLAN: PCIe 2.1/ Bluetooth: USB2.0
Frequency Range
802.11 a/b/g/n/ac/ax + Bluetooth 5.2
Chipset
Realtek RTL8852BE
T/R
2T2R
Dimensions (WxL/ mm)
30.0 x 22.0
Operation Temp.
0°C ~ 70°C
Driver Support
Windows 10, Linux (TBC), Android (TBC)
Warranty
1 years
| Model No. | Description |
|---|---|
| MEC-WIFI-2142B-30 | WLAN 802.11 a/b/g/n/ac/ax 2T2R BT 5.2 M.2 Type 2230 A+E key (Wi-Fi 6E) |
| Date | Document Type | Capacity |
|---|---|---|
| 2024.08.01 | WiFi Solution_MEC-WIFI-2142B-30_Datasheet | 1.03 MB |
