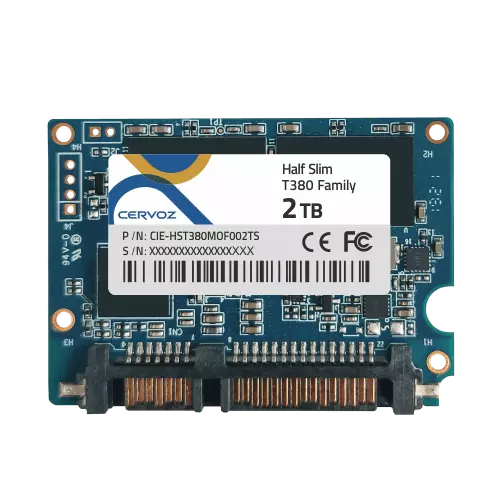

T380 Family

Industrial Half Slim Embedded Module

Features

  • Compliant with SATA III 6.0Gb/s
  • 3D TLC NAND flash memory
  • Capacity: 64GB ~ 2TB
  • End-to-End data protection
  • SLC write cache technology
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
Cervoz Industrial Half Slim Embedded Module T380 family is a Solid State Disk product that is in compliance with the SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards. The Half Slim Embedded Module T380 family fits in any 7+15 SATA sockets on a motherboard; it can be used for both booting or storage purposes.

T380 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.

T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.





Series
Titan Series (TLC)
Form Factor
Half Slim
Interface
SATA III 6.0Gb/s
Connector
SATA (7+15pin)
NAND Flash Type
3D TLC
Capacity
64GB ~ 2TB
Dimension (LxWxH/mm)
54.00 x 39.00 x 5.50
Sequential Read
up to 560MB/s
Sequential Write
up to 505MB/s
ECC Scheme
LPDC
MTBF
>2,000,000 hours
Terabyte Written (TBW)
64GB : 73, 128GB : 146, 256GB : 292, 512GB : 583, 1TB : 1167, 2TB : 2333
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: < 1450mW, Idle mode: < 200mW
Specialty Technology
˙End-to-End data protection, ˙SLC write cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
Standard Temp. (0°C ~ 70°C) Wide Temp. (-40°C ~ 85°C) Capacity
CIE-HST380MLF064GS CIE-HST380MLF064GW 64GB
CIE-HST380MMF128GS CIE-HST380MMF128GW 128GB
CIE-HST380MMF256GS CIE-HST380MMF256GW 256GB
CIE-HST380MOF512GS CIE-HST380MOF512GW 512GB
CIE-HST380MOF001TS CIE-HST380MOF001TW 1TB
CIE-HST380MOF002TS CIE-HST380MOF002TW 2TB
Date Document Type Capacity
2022.07.04 Industrial_Embedded_Module_ Half_Slim_T380_Datasheet_Rev1.0 0.98 MB
