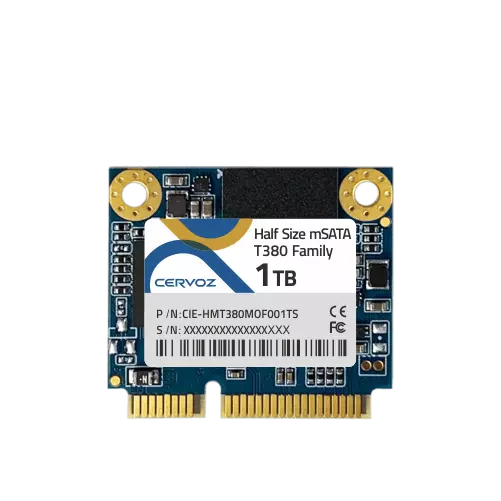

T380 Family

Industrial Half Size mSATA

Features

  • Compliant with SATA III 6.0Gb/s
  • 3D TLC NAND flash memory
  • Capacity: 64GB ~ 1TB
  • End-to-End data protection
  • SLC write cache technology
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
  • Included standard & wide temp. range
Cervoz Industrial Half Size mSATA (MO-300B) Embedded Module T380 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. Half Size mSATA T380 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.

T380 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.

T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.





Series
Titan Series (TLC)
Form Factor
Half Size mSATA (MO-300B)
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
3D TLC
Capacity
64GB ~ 1TB
Dimension (LxWxH/mm)
26.80 x 30.00 x 3.60
Sequential Read
up to 555MB/s
Sequential Write
up to 495MB/s
ECC Scheme
LPDC
MTBF
>2,000,000 hours
Terabyte Written (TBW)
64GB : 73, 128GB : 146, 256GB : 292, 512GB : 583, 1TB : 1167
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 1390mW, Idle mode: < 265mW
Specialty Technology
End-to-End data protection, SLC write cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
Standard Temp. (0°C ~ 70°C) Wide Temp. (-40°C ~ 85°C) Capacity
CIE-HMT380MLF064GS CIE-HMT380MLF064GW 64GB
CIE-HMT380MMF128GS CIE-HMT380MMF128GW 128GB
CIE-HMT380MMF256GS CIE-HMT380MMF256GW 256GB
CIE-HMT380MOF512GS CIE-HMT380MOF512GW 512GB
CIE-HMT380MOF001TS CIE-HMT380MOF001TW 1TB
Date Document Type Capacity
2022.07.04 Industrial_Embedded_Module_Half_Size_mSATA_T380_Datasheet_Rev1.0 0.97 MB
