MEC-LAN-M102P
Industrial Mini PCIe Ethernet Expansion Card_M102P
Features
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
- Fully compliant with PCI-Express Base Specification Rev. 2.0
- Integrated 10/100/1000Mbps transceiver
- IEEE 802.3x Full-Duplex flow control
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z compliant
- Complies with EN61000
- Two independent PSE channels

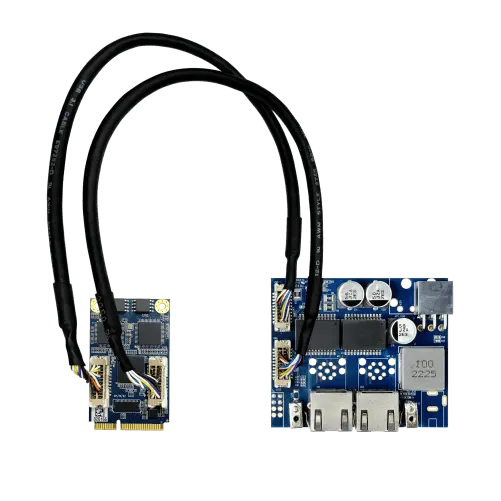

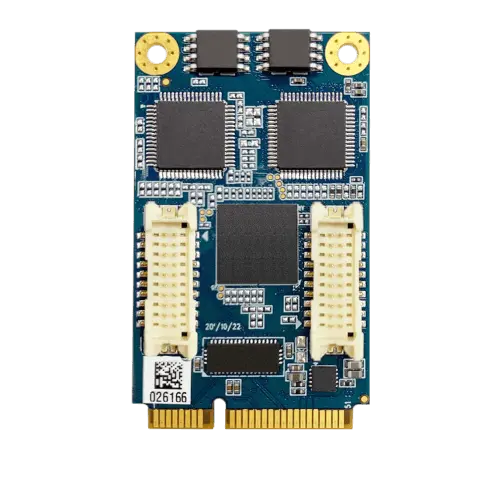

MEC-LAN-M102P is a dual isolated GbE LAN module for embedded PC. The card follows the Mini PCI-e standard which is compliant with PCI Express x 1 classification and small form factor (30×50.95 mm). This board fits in any host computer that has Mini PCI-e card slots. MEC-LAN-M102P is a highly cost-effective solution to expand Gigabyte network for your computer.

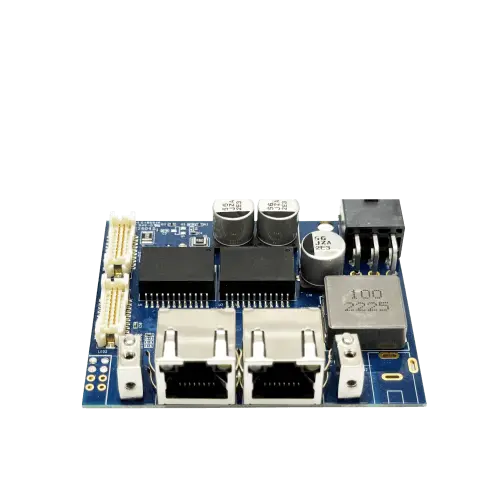

MEC-LAN-M102P has two Ethernet ports that supports auto-negotiation 10/100/1000Mbps Ethernet connection with IEEE 802.3x flow control. Intel Ethernet Chipset MEC-LAN-M102P uses high performance, efficiency, and stability Intel I210-IT Gigabit Ethernet Controller. An external PoE+ module is available to support both power and data transmission over a single Ethernet cable, delivering higher power output than standard PoE.
MEC-LAN-M102P is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX is the unique mounting mechanism designed specially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Top Performance
MEC-LAN-M102P has two Ethernet ports that supports auto-negotiation 10/100/1000Mbps Ethernet connection with IEEE 802.3x flow control. Intel Ethernet Chipset MEC-LAN-M102P uses high performance, efficiency, and stability Intel I210-IT Gigabit Ethernet Controller. An external PoE+ module is available to support both power and data transmission over a single Ethernet cable, delivering higher power output than standard PoE.
High Usability
MEC-LAN-M102P is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX – Versatile Mounting
MECFIX is the unique mounting mechanism designed specially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Solution
Ethernet
Form Factor
Mini-PCIe
Interface
Ethernet 10/100/1000 x 2 (RJ45)
PCI-Express Revision
PCI-Express Base Specification Rev 2.0
Electromechanical Revision
PCI-Express Mini Card Electromechanical Rev. 2.0
Dimensions (WxL/ mm)
30.00 x 50.95
Controllers
Intel I210 x2
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Power Consumption
705mA@3.3V; Maximum 5.5A @ 12V w/ 6 pin PCIE-ATX
Operation Temp.
–40°C ~ +85°C
Storage Temp.
–40°C ~ +85°C
PoE+
✓
MECFIX
✓
Driver Support
Win 7, Win 8, Win 10
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-M102P | Mini PCI-e 2 port 10/100/1000 PoE+ Ethernet board (-40℃~+85℃) |
