MEC-LAN-2602P
Industrial M.2 2280 PCIe Ethernet Card_2602P
Features
- Dual-Lane (x2) PCI-Express with throughput up to 5.0/2.5GT/s
- Fully compliant with PCI-Express Base Specification Rev.2.1
- Integrated 10/100/1000/2500Mbps transceiver
- Two independent PSE channels
- IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3bz compliant
- IEEE 802.3x and IEEE 802.3z flow control
- Support Wake-on-LAN

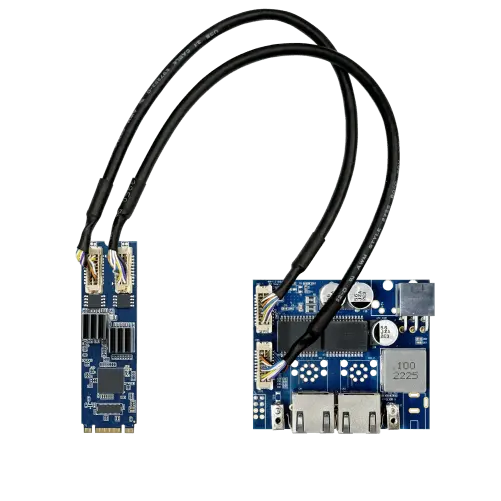

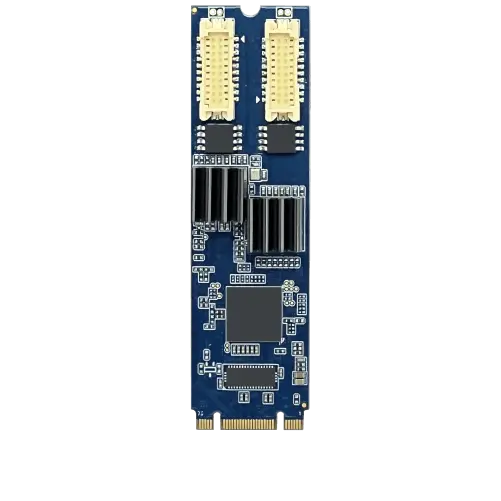

MEC-LAN-2602P is a dual isolated 2.5GbE LAN module for embedded PC. The card follows the M.2 standard which is compliant with PCI Express x 2 classification and M.2 form factor. This board fits in any host computer that has M.2 slots. MEC-LAN-2602P is a highly cost-effective solution to expand Gigabit network for your computer.
MEC-LAN-2602P has two Ethernet ports that support auto-negotiation 10/100/1000/2500Mbps Ethernet connection with IEEE 802.3x and IEEE 802.3z flow control. MEC-LAN-2602P uses high performance, efficiency, and stability Intel I226 Gigabit Ethernet Controller. An external PoE+ module is available to support both power and data transmission over a single Ethernet cable, delivering higher power output than standard PoE.

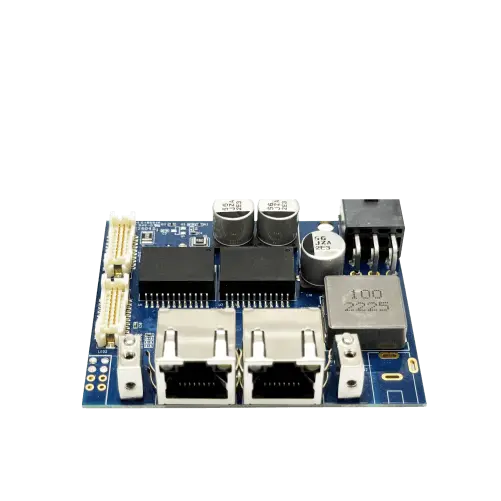

MEC-LAN-2602P is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX is the unique mounting mechanism designed especially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Top Performance
MEC-LAN-2602P has two Ethernet ports that support auto-negotiation 10/100/1000/2500Mbps Ethernet connection with IEEE 802.3x and IEEE 802.3z flow control. MEC-LAN-2602P uses high performance, efficiency, and stability Intel I226 Gigabit Ethernet Controller. An external PoE+ module is available to support both power and data transmission over a single Ethernet cable, delivering higher power output than standard PoE.
High Usability
MEC-LAN-2602P is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX – Versatile Mounting
MECFIX is the unique mounting mechanism designed especially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Solution
Ethernet
Form Factor
M.2 2280 (B+M key)
Interface
Ethernet 10/100/1000/2500 x 2 (RJ45)
PCI-Express Revision
PCI-Express Base Specification Rev. 2.1
Electromechanical Revision
PCI-Express M.2 Electromechanical Rev. 1.1
Dimensions (WxL/ mm)
22.00 x 80.00
Controllers
Intel I226-IT x2
Bus
Dual-Lane (x2) PCI-Express with throughput up to 5.0/2.5GT/s
Power Consumption
990mA@3.3V; Maximum 5.5A @ 12V w/ 6 pin PCIE-ATX
Operation Temp.
– 40°C ~ +85°C
Storage Temp.
– 40°C ~ 125°C
PoE+
✓
MECFIX
✓
Driver Support
Win 10, Win 11
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-2602P | M.2 2280 2 port 2.5GbE PoE+ Ethernet board (-40℃~+85℃) |
