MEC-LAN-2101i
Industrial M.2 PCIe Ethernet Expansion Card_2101i
Features
- Dual-Lane (x2) PCI-Express with throughput up to 16GT/s
- Fully compliant with PCI-Express Base Specification Rev.4.0
- Integrated 100M/ 1000M/ 2.5G/ 5G/ 10Gbps transceiver
- Complies with EN61000
- Compliant with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz and IEEE 802.3an
- IEEE 802.3x & IEEE 802.3z flow control

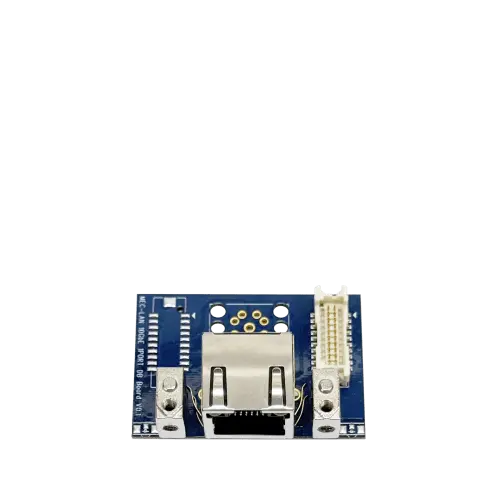

- Support single isolated 10GbE LAN port
- Lowest power consumption 10GbE expansion solution

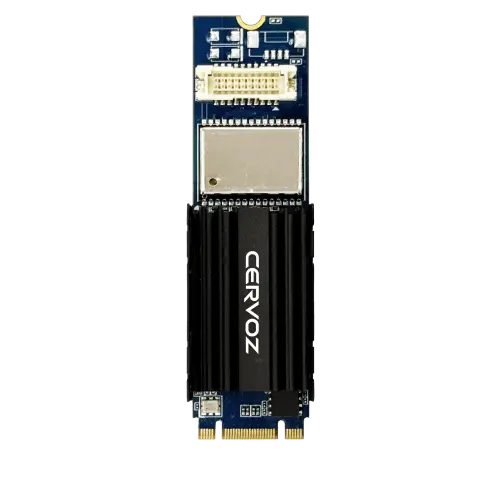

MEC-LAN-2101i is a single-port isolated 10GbE LAN module designed for embedded PC application. It adopts the M.2 standard with a PCI Express x2 interface and M.2 form factor, allowing seamless integration into host systems equipped with an M.2 slot. This module provides a cost-effective solution for upgrading system network performance to 10GbE connectivity.
MEC-LAN-2101i features one Ethernet port supporting auto-negotiation for 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps, and is compliant with IEEE 802.3x, IEEE 802.3z, and IEEE 802.3an standards.
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
MEC-LAN-2101i features one Ethernet port supporting auto-negotiation for 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps, and is compliant with IEEE 802.3x, IEEE 802.3z, and IEEE 802.3an standards.
Top Performance
Powered by the high-performance, energy-efficient, and reliable Intel E610-XAT Ethernet controller, MEC-LAN-2101i ensures stable and efficient network operation.High Usability

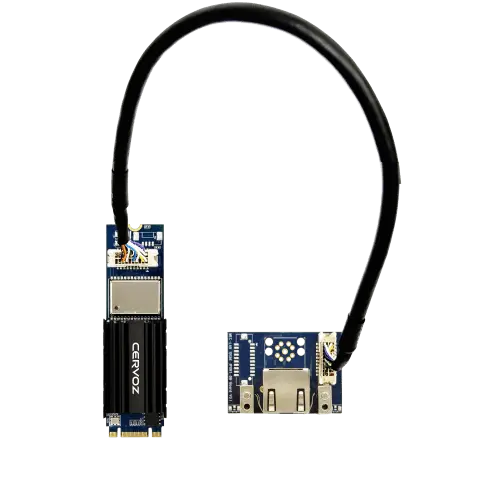

MEC-LAN-2101i supports flexible deployment across various applications. The standard package includes a daughter board, mounting bracket, and connection cables for system integration.MECFIX – Versatile Mounting
MECFIX is the unique mounting mechanism designed specially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Solution
Ethernet
Form Factor
M.2 2280 (B+M key)
Interface
Ethernet 100M/1000M/2.5G/5G/10Gbps x 1 (RJ45)
PCI-Express Revision
PCI-Express Base Specification Rev. 4.0
Electromechanical Revision
PCI-Express M.2 Electromechanical Rev. 1.1
Dimensions (WxL/ mm)
22.00 x 80.00
Controllers
Intel E610-XAT x1
Bus
Dual-Lane (x2) PCI-Express with throughput up to 16 GT/s
Power Consumption
900mA@3.3V
Operation Temp.
0 ~ 70°C
Storage Temp.
–40 ~ 125°C
Isolation
✓
MECFIX
✓
Driver Support
Win 10, Win 11
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-2101i | M.2 2280 (B+M key) 1 port 10GbE isolated Ethernet board |
