M336 Family

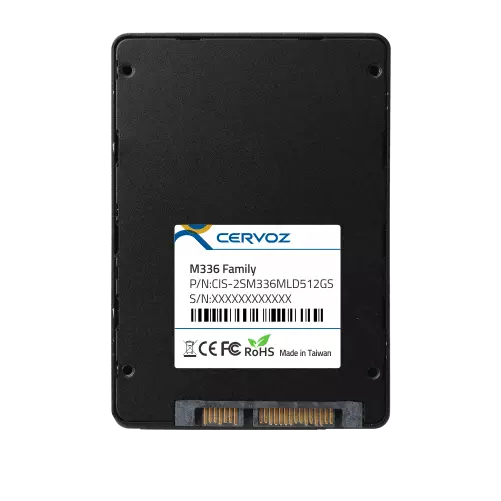

Industrial 2.5" SATA SSD - M336
Features
- Compliant with SATA III 6.0Gb/s
- MLC NAND flash memory
- Capacity: 32GB ~ 512GB
- Powerguard Function (Power Loss Protection)
- With DRAM Buffer
- Operating as boot disk
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
Cervoz Industrial 2.5" SATA SSD M336 family is a high capacity Solid State Disk product that is in compliance with the 2.5" form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards.
In addition, M336 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges. With this special design, SSD is constantly charging the tantalum capacitors with 12V power during its operation.
M336 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
In addition, M336 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges. With this special design, SSD is constantly charging the tantalum capacitors with 12V power during its operation.
M336 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
Series
Momentum Series (MLC)
Form Factor
2.5 inch
Interface
SATA III 6.0Gb/s
Connector
SATA (7 + 15 pin)
NAND Flash Type
3D MLC
Capacity
32GB ~ 512GB
Dimension (LxWxH/mm)
100.00 x 69.85 x 7.00
Sequential Read
up to 550MB/s
Sequential Write
up to 450MB/s
ECC Scheme
up to 66bits / 1K Byte
MTBF
>3,000,000 hours
Terabyte Written (TBW)
32GB : 31, 64GB : 63, 128GB : 125, 256GB : 250, 512GB : 500
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: < 2505mW, Idle mode: < 425mW
With DRAM Buffer
✓
Powerguard
✓
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Semi Temp. (-20°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|---|
| CIS-2SM336MKD032GS | CIS-2SM336MKD032GX | CIS-2SM336MKD032GW | 32GB |
| CIS-2SM336MKD064GS | CIS-2SM336MKD064GX | CIS-2SM336MKD064GW | 64GB |
| CIS-2SM336MLD064GS | CIS-2SM336MLD064GX | CIS-2SM336MLD064GW | 64GB |
| CIS-2SM336MKD128GS | CIS-2SM336MKD128GX | CIS-2SM336MKD128GW | 128GB |
| CIS-2SM336MLD128GS | CIS-2SM336MLD128GX | CIS-2SM336MLD128GW | 128GB |
| CIS-2SM336MKD256GS | CIS-2SM336MKD256GX | CIS-2SM336MKD256GW | 256GB |
| CIS-2SM336MLD256GS | CIS-2SM336MLD256GX | CIS-2SM336MLD256GW | 256GB |
| CIS-2SM336MLD512GS | CIS-2SM336MLD512GX | CIS-2SM336MLD512GW | 512GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.12.30 | Cervoz_Industrial_SSD_2 5_inch_SATA_M336_Datasheet_Rev2.3 | 1.23 MB |
