T383 Family

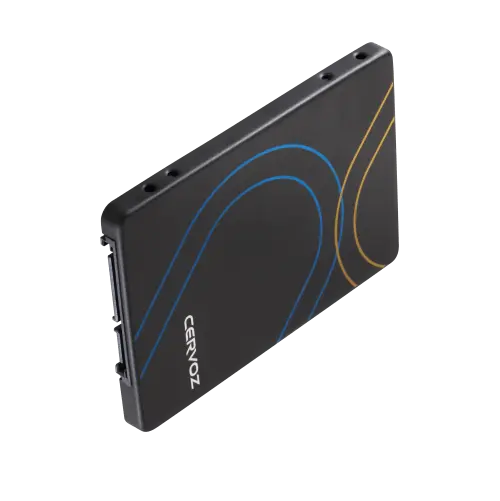

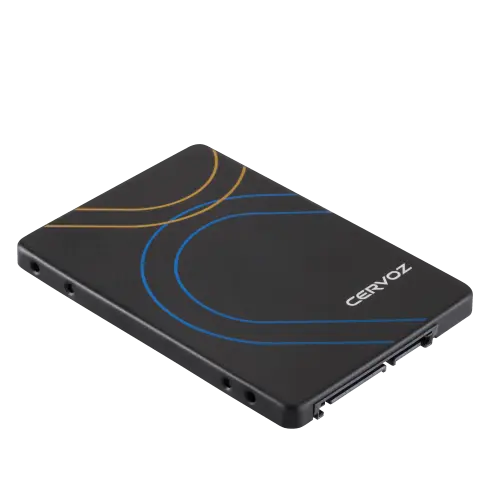

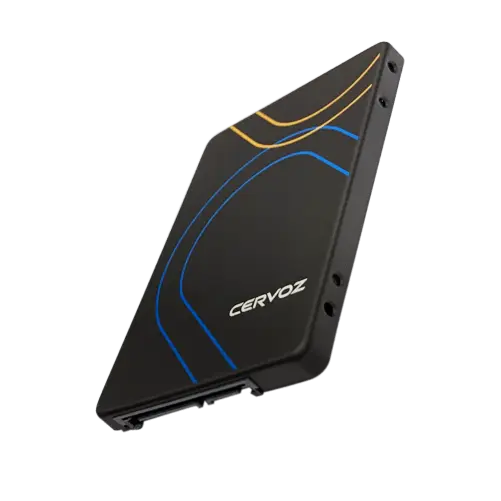

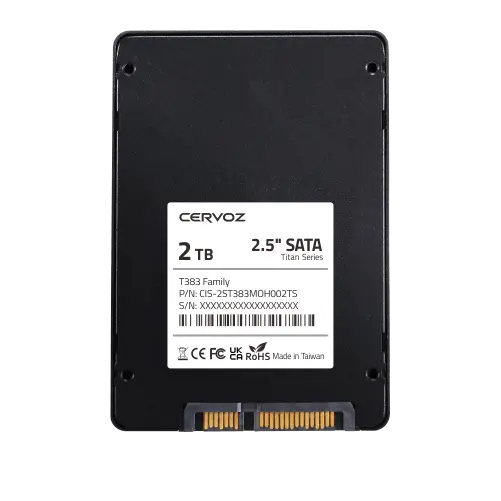

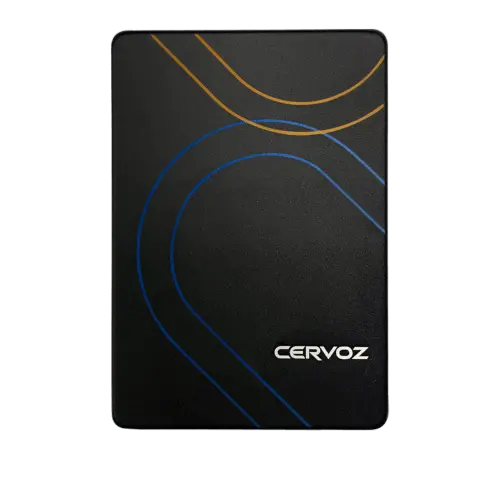

Industrial 2.5" SATA SSD - T383
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 128GB ~ 2TB
- End-to-End data protection
- Dynamic SLC cache technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Cervoz Industrial 2.5" SATA SSD T383 family is a high capacity Solid State Disk product that is in compliance with the 2.5" form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards.
T383 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T383 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
T383 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T383 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Series
Titan Series (TLC)
Form Factor
2.5 inch
Interface
SATA III 6.0Gb/s
Connector
SATA (7 + 15 pin)
NAND Flash Type
3D TLC NAND
Capacity
128GB/256GB/512GB/1TB/2TB
Dimension (LxWxH/mm)
100.10 x 69.85 x 7.00mm
Sequential Read
up to 560MB/s
Sequential Write
up to 500MB/s
ECC Scheme
Applies the LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
128GB : 234, 256GB : 469, 512GB : 938, 1TB : 1875, 2TB : 3750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: < 1005mW, Idle mode: < 385mW
Specialty Technology
End-to-End data protection, Dynamic SLC cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Capacity |
|---|---|
| CIS-2ST383MMH128GS | 128GB |
| CIS-2ST383MNH256GS | 256GB |
| CIS-2ST383MNH512GS | 512GB |
| CIS-2ST383MOH001TS | 1TB |
| CIS-2ST383MOH002TS | 2TB |
Please Note:
Since certain storage capacity has to be reserved for firmware and controller management purposes; the physical capacity of the SATA flash module will be approximately 93.1% of the indicated capacity. If you need to install an image that has the exact (or close to) the indicated size of the flash module, please choose your flash module with a greater capacity.
| Date | Document Type | File Size |
|---|---|---|
| 2025.08.14 | Cervoz_Industrial_SSD_ 2.5inch_SATA_T383_Datasheet_Rev1.0 | 0.99 MB |
