S350 Family

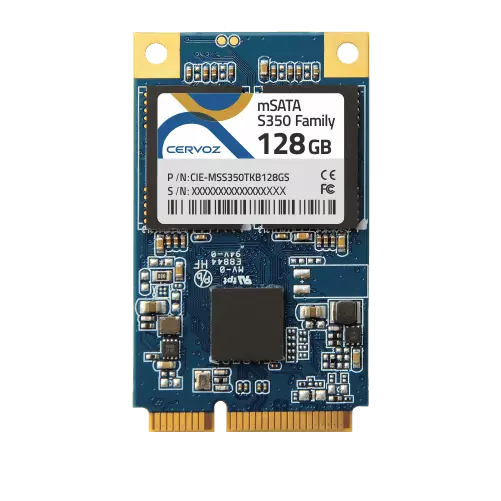

Industrial mSATA Embedded Module - S350
Features
- Compliant with SATA III 6.0Gb/s
- SLC NAND flash memory
- Capacity: 8GB ~ 128GB
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Included standard & wide temp. range
Cervoz Industrial mSATA Embedded Module S350 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA S350 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.
S350 family uses superior quality, preselected single-level cell (SLC) NAND flash memory from the industry leading manufacturer Kioxia (Toshiba). This product includes both standard temperature range and wide temperature range options with various capacities to choose from.
S350 family offers outstanding performance and reliability, ideal for extreme applications in mission critical environments. Factory Automation, Transportation, Networking and Video Surveillance all benefit from this superior read/write endurance and data retention.
S350 family uses superior quality, preselected single-level cell (SLC) NAND flash memory from the industry leading manufacturer Kioxia (Toshiba). This product includes both standard temperature range and wide temperature range options with various capacities to choose from.
S350 family offers outstanding performance and reliability, ideal for extreme applications in mission critical environments. Factory Automation, Transportation, Networking and Video Surveillance all benefit from this superior read/write endurance and data retention.
Series
Supreme Series (SLC)
Form Factor
mSATA
Interface
SATA III 6.0Gb/s
Connector
mSATA
NAND Flash Type
SLC
Capacity
8GB ~ 128GB
Dimension (LxWxH/mm)
50.80 x 29.85 x 4.00
Sequential Read
up to 510MB/s
Sequential Write
up to 420MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
8GB : 156, 16GB : 313, 32GB : 625, 64GB : 1250, 128GB : 2500
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 2250mW, Idle mode: < 325mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-MSS350TIB008GS | CIE-MSS350TIB008GW | 8GB |
| CIE-MSS350TIB016GS | CIE-MSS350TIB016GW | 16GB |
| CIE-MSS350TJB032GS | CIE-MSS350TJB032GW | 32GB |
| CIE-MSS350TKB064GS | CIE-MSS350TKB064GW | 64GB |
| CIE-MSS350TKB128GS | CIE-MSS350TKB128GW | 128GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.07.01 | Industrial_Embedded_Module_mSATA_S350_Datasheet_Rev1.0 | 0.90 MB |
