MEC-LAN-2002-SFP
Industrial M.2 2280 PCIe Ethernet Card_2002-SFP
Features
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
- Standard SFP modules supporting data rates of up to 1Gbps
- IEEE 802.3 for 1000Base-SX/1000Base-LX, IEEE 802.3ap for 1000Base-KX, PICMG 3.1 for 1000Base-BX
- Support Wake-on-LAN and Hot-Swap function
- Allowing for long-distance communication and easy upgrades
- Modular Design, flexibility and scalability
- Support multiple SFP ports, both single-mode or multi-mode

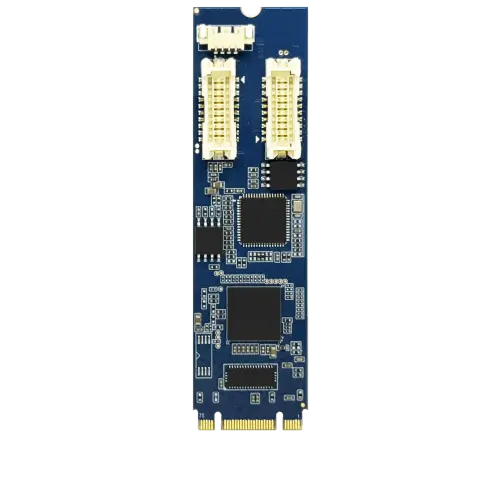

MEC-LAN-2002-SFP is a dual 1GbE LAN module designed for embedded PC. It follows the M.2 standard which is compliant with PCI Express x 1 classification and M.2 form factor. MEC-LAN-2002-SFP is ideal for use in small PCs, industrial computers, single-board computers, digital multimedia devices, and other equipment with M.2 interface slots.

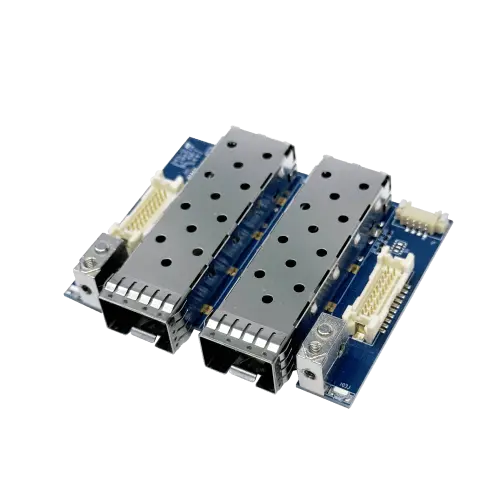

MEC-LAN-2002-SFP has two SFP (Small Form-factor Pluggable) Ethernet ports, supporting 1000Mbps Ethernet speeds, and complies with IEEE 802.3x and IEEE 802.3z flow control standards. With these features, MEC-LAN-2002-SFP ensures reliable, high-speed network connections for a wide range of applications. MEC-LAN-2002-SFP uses Intel I210 Gigabit Ethernet Controller, with high performance, efficiency and stability, offering a cost-effective solution for expanding your system’s Gigabit Ethernet connectivity.

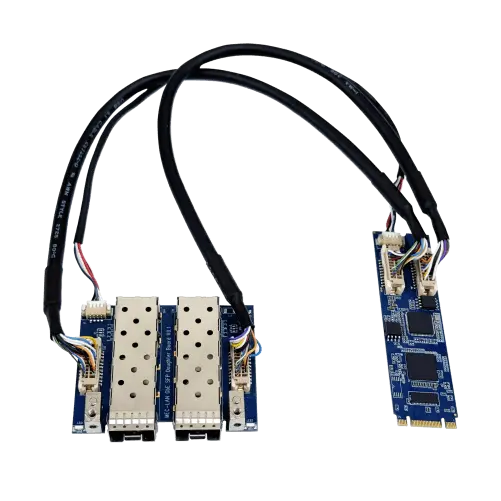

MEC-LAN-2002-SFP is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX is the unique mounting mechanism designed especially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Top Performance
MEC-LAN-2002-SFP has two SFP (Small Form-factor Pluggable) Ethernet ports, supporting 1000Mbps Ethernet speeds, and complies with IEEE 802.3x and IEEE 802.3z flow control standards. With these features, MEC-LAN-2002-SFP ensures reliable, high-speed network connections for a wide range of applications. MEC-LAN-2002-SFP uses Intel I210 Gigabit Ethernet Controller, with high performance, efficiency and stability, offering a cost-effective solution for expanding your system’s Gigabit Ethernet connectivity.
High Usability
MEC-LAN-2002-SFP is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX – Versatile Mounting
MECFIX is the unique mounting mechanism designed especially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Solution
Ethernet
Form Factor
M.2 2280 (B+M key)
Interface
Ethernet 1000Mbps SerDes x 2 (SFP)
PCI-Express Revision
PCI-Express Base Specification Rev. 2.0
Electromechanical Revision
PCI-Express M.2 Electromechanical Rev. 1.1
Dimensions (WxL/ mm)
22.00 x 80.00
Controllers
Intel I210-IS x2
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
Power Consumption
500mA@3.3V
Operation Temp.
– 40°C ~ 85°C
Storage Temp.
– 40°C ~ 125°C
MECFIX
✓
Driver Support
Win 7, Win 8, Win 10, Win 11
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-2002-SFP | M.2 2280 (B+M key) 2-port 1GbE SFP Ethernet board (-40℃~+85℃) |
