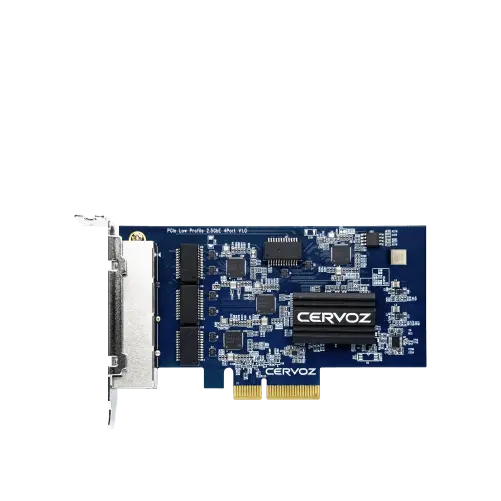

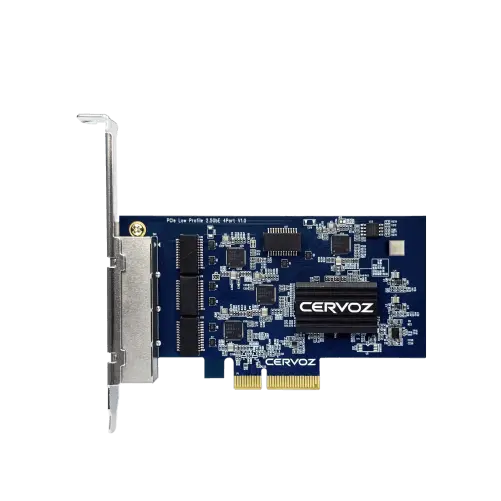

MEC-LAN-PL604
Industrial PCIe Low-Profile Ethernet Expansion Card_PL604
Features
- Quad-Lane (x4) PCI-Express with throughput up to 5.0/2.5GT/s
- Fully compliant with PCI-Express Base Specification Rev.2.0
- Integrated 10/100/1000/2500Mbps transceiver
- Support four isolated 2.5GbE LAN ports
- IEEE 802.3, IEEE802.3u, IEEE 802.3ab and IEEE 802.3bz compliant
- IEEE 802.3x and IEEE 802.3z flow control
- Voltage converter design provides a stable operating voltage
MEC-LAN-PL604 is a quad isolated 2.5GbE LAN module for embedded PC. The card follows the PCI-e standard which is compliant with PCI Express x 4 classification. This board fits in any host computer that has PCI-e card slots. MEC-LAN-PL604 is a highly cost-effective solution to expand 2.5Gigabit network for your computer, desktop tower, mini workstation, or server computer.
MEC-LAN-PL604 has four Ethernet ports that support auto-negotiation 10/100/1000/2500Mbps Ethernet connection with IEEE 802.3x and IEEE 802.3z flow control.
MEC-LAN-PL604 uses high performance, efficiency, and stability Intel I226 Gigabit Ethernet Controller.

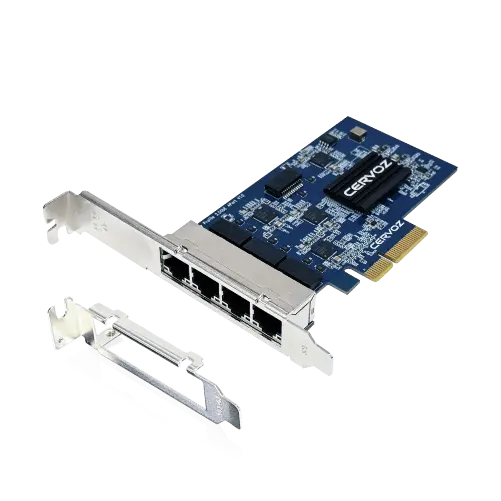

MEC-LAN-PL604 is designed with flexibilities for many different application and accessories (standard bracket and low profile bracket) are included in the standard package.
Top Performance
MEC-LAN-PL604 has four Ethernet ports that support auto-negotiation 10/100/1000/2500Mbps Ethernet connection with IEEE 802.3x and IEEE 802.3z flow control.
Intel Ethernet Chipset
MEC-LAN-PL604 uses high performance, efficiency, and stability Intel I226 Gigabit Ethernet Controller.
High Usability
MEC-LAN-PL604 is designed with flexibilities for many different application and accessories (standard bracket and low profile bracket) are included in the standard package.
Solution
Ethernet
Form Factor
Compact Low-Profile PCI-Express GEN2x4
Interface
Ethernet 10/100/1000/2500 x 4(RJ45)
PCI-Express Revision
PCI-Express Base Specification Rev. 2.0
Electromechanical Revision
PCI-Express Base Specification Rev. 2.0
Dimensions (WxL/ mm)
68.90 x 121.50
Controllers
Intel I226-IT x4
Bus
Quad-Lane (x4) PCI-Express with throughput up to 5.0/2.5GT/s
Power Consumption
550mA @12V
Operation Temp.
-40°C ~ 85°C
Storage Temp.
-40°C ~ 125°C
Isolation
Isolated GbE LAN port: Quad
Driver Support
Win 10, Win 11
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-PL604 | PCI-e low profile 4 port 2.5GbE isolated Ethernet board |
