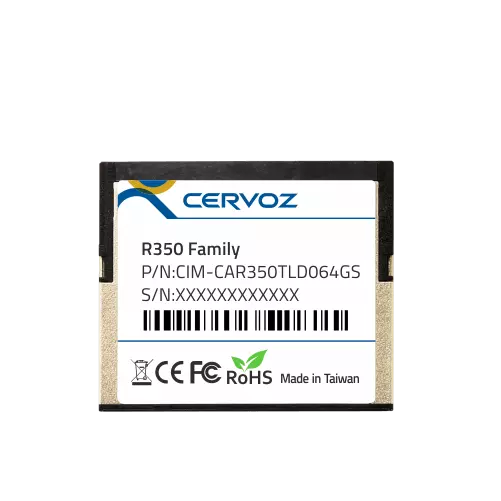

R350 Family

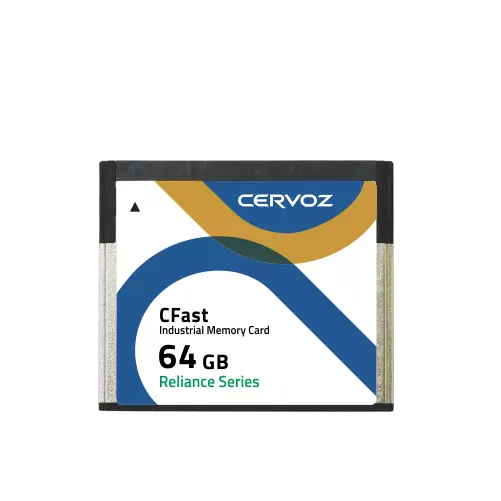

Industrial CFast Memory Card - R350
Features
- Compliant with SATA III 6.0Gb/s
- RO-MLC technology
- Capacity: 16GB ~ 64GB
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Cervoz Industrial CFast Card R350 is a high capacity Solid State Flash Disk product that is in compliance with the CFast and SATA III standards. The device design is based on the 7pin for data segment and 17pin for power and controller segment. The R350 CFast card is in low profile form factor and fits in any systems with CFast slots.
R350 uses preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Toshiba and utilizes our "Reliability Optimized-MLC (RO-MLC) Technology". We adopt specialized firmware to control MLC NAND flash which only uses the strong pages of MLC NAND as storage; the technology is manipulated at the block level, and with each block's capacity halved by treating it as SLC. This product includes various capacities to choose from.
R350 offers high performance with reliability and endurance, as well as a remarkable price-performance ratio, ideal for applications in harsh environments. Industrial PC/Embedded PC, Factory Automation, Transportation, Information & Entertainment and Server & Cloud Computing all benefit from this superior reliability and cost-effectiveness.
R350 uses preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Toshiba and utilizes our "Reliability Optimized-MLC (RO-MLC) Technology". We adopt specialized firmware to control MLC NAND flash which only uses the strong pages of MLC NAND as storage; the technology is manipulated at the block level, and with each block's capacity halved by treating it as SLC. This product includes various capacities to choose from.
R350 offers high performance with reliability and endurance, as well as a remarkable price-performance ratio, ideal for applications in harsh environments. Industrial PC/Embedded PC, Factory Automation, Transportation, Information & Entertainment and Server & Cloud Computing all benefit from this superior reliability and cost-effectiveness.
Series
Reliance Series (RO-MLC)
Form Factor
CFast
Interface
SATA III 6.0Gb/s
Connector
SATA (7+17 pin)
NAND Flash Type
MLC (Controlled by Reliability Optimized-MLC Technology)
Capacity
16GB ~ 64GB
Dimension (LxWxH/mm)
42.8 x 36.4 x 3.3
Sequential Read
up to 510MB/s
Sequential Write
up to 450MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
16GB : 130.2, 32GB : 260.4, 64GB : 520.8
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/- 5%
Power Consumption
Active mode: < 1475mW, Idle mode: < 260mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIM-CAR350TKD016GS | CIM-CAR350TKD016GW | 16GB |
| CIM-CAR350TKD032GS | CIM-CAR350TKD032GW | 32GB |
| CIM-CAR350TLD064GS | CIM-CAR350TLD064GW | 64GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.07.05 | Industrial_Memory Card_CFast_R350_Datasheet_Rev1.3 | 0.98 MB |
