M350 Family

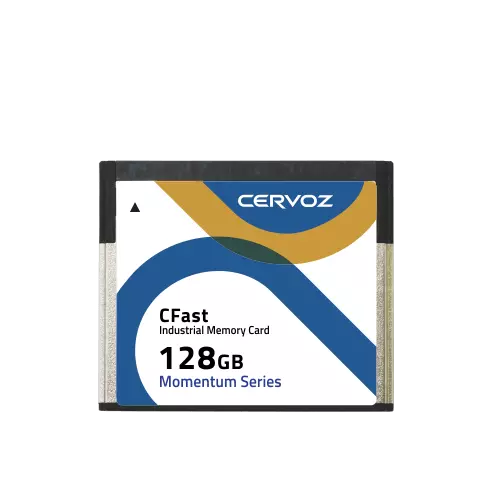

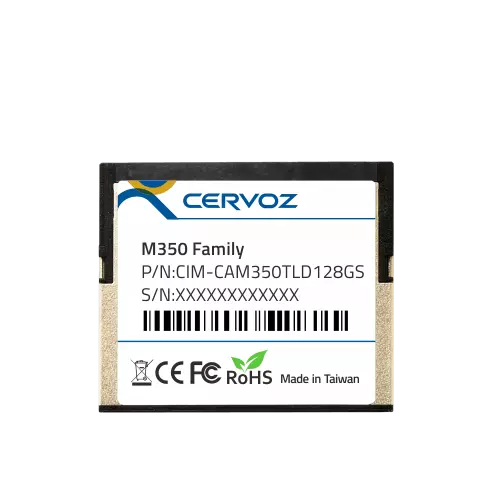

Industrial CFast Memory Card - M350
Features
- Compliant with SATA III 6.0Gb/s
- MLC NAND flash memory
- Capacity: 32GB ~128GB
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Cervoz Industrial CFast Card M350 Family is a high capacity Solid State Flash Disk product that is in compliance with the CFast and SATA III standards. The device design is based on the 7pin for data segment and 17pin for power and controller segment. The M350 Family CFast card is in low profile form factor and fits in any systems with CFast slots. M350 Family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Toshiba.
M350 Family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
M350 Family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
Series
Momentum Series (MLC)
Form Factor
CFast
Interface
SATA III 6.0Gb/s
Connector
SATA (7+17 pin)
NAND Flash Type
MLC
Capacity
32GB ~ 128GB
Dimension (LxWxH/mm)
42.8 x 36.4 x 3.3
Sequential Read
up to 495MB/s
Sequential Write
up to 445MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
32GB: 31, 64GB: 63, 128GB: 125
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/- 5%
Power Consumption
Active mode: < 1550mW, Idle mode: < 300mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIM-CAM350TKD032GS | CIM-CAM350TKD032GW | 32GB |
| CIM-CAM350TKD064GS | CIM-CAM350TKD064GW | 64GB |
| CIM-CAM350TLD128GS | CIM-CAM350TLD128GW | 128GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.12.30 | Cervoz_Industrial_Memory Card_CFast_M350_Datasheet_Rev1.2 | 0.99 MB |
