Maximizing Network Efficiency with M.2 Ethernet Solutions

Server Room Computing Networking Power Efficiency

Business operations depend on network efficiency and stability for data throughput, latency, and system reliability. M.2 Ethernet solutions have compact form factors and provide high-performance networking in smaller spaces, including embedded systems and mini PCs. Embedded Ethernet integrates easily into industrial applications, providing robust and reliable networking.


Understanding M.2 Ethernet Technology

What is M.2 Ethernet?

The compact and multifunctional M.2 Ethernet networking solution combines Ethernet connectivity into the M.2 form factor for computing. M.2 Ethernet cards are attached to the motherboard using      A+E keys, unlike typical Ethernet systems that use PCIe or USB adapters. It expedites the design and use of space in mini PCs, embedded systems, and industrial uses. Corporate settings use M.2 Ethernet thanks to its compact size and robust performance.

In addition to M.2 solutions, mainstream PCIe Ethernet solutions with Power Over Ethernet (PoE) technology deliver both power and data through a single cable, simplifying installation and reducing cabling requirements. Low-profile PCIe Ethernet cards are also available, helping servers save valuable space. Together, these options provide plenty of network performance optimization choices for different operational needs.


Features of M.2 Ethernet Solutions (based on Cervoz products)

  • Utilizes PCIe lanes for high-speed data transfer.
  • Integrated with Intel I226-IT or I210-IT controllers for performance.
  • Isolated-multi-port configurations for higher performance or traffic segmentation.
  • Supports 10/100/1000/2500 Mbps transceiver for flexibility across network setups.
  • Offers compact form factors (M.2 2230, 2242, 2260, 2280) to integrate in small devices.
  • Operates reliably across a wide temperature range (-40°C to 85°C) for durability.
  • Incorporates surge protection (up to 2kV) to safeguard against electrical disturbances.
  • Capable of dual-port configurations for link aggregation for increased bandwidth.
  • Allows full-duplex mode, doubling bandwidth for simultaneous send/receive operations.
  • Supports jumbo frames for improved throughput in high-speed networks.
  • Low power consumption, around 625mA@3.3V, for energy-efficient designs.
  • Provides MECFIX mounting options for installation across system architectures.
  • Compatible with SMB Multichannel for simultaneous multi-threaded data streams.
  • Optimizes redundancy and fault tolerance through dual Ethernet configurations.


Comparing M.2 Ethernet and Mini PCIe Ethernet Cards

Form Factor and Integration

Usually, M.2 Ethernet cards are smaller than Mini PCIe Ethernet cards. M.2 cards in the 2230 or 2242 form factors suit embedded systems, ultra-compact PCs, and IoT devices. They offer flexible mounting options, including the A+E key slot for Wi-Fi cards. On the other hand, Mini PCIe Ethernet cards can be larger and offer integration options for industrial PCs and small-scale servers requiring physical durability and connectivity redundancy. The compact nature of M.2 Ethernet cards allows for easy integration into space-constrained environments, though additional thermal solutions may be required in high-performance contexts to manage heat dissipation effectively. Although M.2 cards are relatively small, their compact design does not always facilitate better airflow and heat dissipation. In fact, because of the small size of M.2 cards, heat concentration is more likely to be an issue. This depends on the thermal design (e.g., whether heatsinks or thermal pads are included). In contrast, Mini PCIe cards, due to their size, may provide more port options for network-intensive corporate infrastructures.


Performance and Compatibility

M.2 Ethernet cards using the Intel I226-IT controller support data rates up to 2.5GT/s for performance boost over traditional 1GbE solutions while maintaining a compact profile. On the other hand, Mini PCIe Ethernet cards may support dual-port configurations with higher total throughput capabilities for aggregated bandwidth or network redundancy scenarios.

When considering future-proofing, M.2 Ethernet cards suit scalable environments. That's where IoT expansion or edge computing is anticipated. They integrate into modern, high-density server setups. In contrast, Mini PCIe cards benefit legacy systems or infrastructures; PCIe slots are available, but space is less of a concern. Compatibility with existing corporate IT systems varies. M.2 cards are more future-oriented for better power efficiency and integration into next-gen motherboards. In contrast, Mini PCIe cards tackle more traditional setups requiring stable, high-throughput connections across networks.


Exploring Applications of M.2 Ethernet


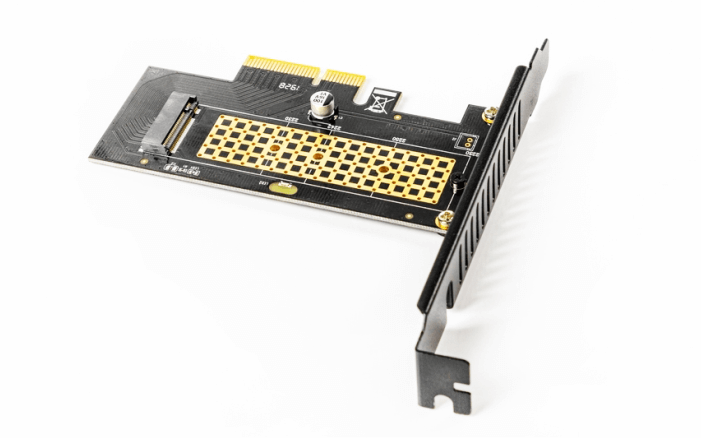

M.2 NVMe to PCIeX Adapter Board for SSD


Embedded Ethernet Solutions for Industrial Applications

M.2 Ethernet cards update industrial systems while integrating with embedded applications. Using the Intel I226-IT controller, they provide high-bandwidth communication up to 2.5GT/s and low-latency performance, ideal for real-time monitoring, automation, and control systems. With their compact form factors, they fit into tight spaces while maintaining optimal performance through efficient thermal management. Moreover, some industrial solutions can operate in extreme temperatures with surge protection, making them reliable for grave industrial environments. It guarantees unfailing operation in the manufacturing, energy, and transportation sectors.


Advantages of M.2 Ethernet Solutions in Operations

  • Seamless integration into multi-CPU systems in data centers or network appliances without bottlenecks due to PCIe lane management.
  • Idea for demand sectors like high-frequency trading environments, such as stock exchanges and algorithmic trading platforms, where ultra-low latency and uninterrupted data transmission are critical.
  • Optimized for embedded or stacked systems where space and power efficiency are critical.
  • Essential for mission-critical systems like medical devices or critical infrastructure monitoring where isolated and reliable networks are essential.
  • Mainstream M.2 interface to seamless integration with industrial control systems in factory automation.
  • Suitable for applications that demand consistent high throughput and robust network performance, such as video streaming and remote surveillance.


Advantages of Cervoz's Unique M.2  Ethernet Solutions

Cervoz's M.2 Ethernet Expansion lineup features a PCIe interface with single-or-duo-isolated RJ45 ports, reaching up to 2.5GbE. The form factor comes with M.2 2280 (B+M key) and M.2 2230 (A+E key). It's worth mentioning that some M.2 2280 series feature Cervoz's innovative 3-in-1 design, customizable by snapping it off into smaller M.2 2260 or M.2 2242 formats. It ensures scalable integration across system designs for space-constrained business environments. The additional proprietary MECFIX technology further enhance flexibility and ease of installation by allowing straightforward and secure mounting across various system architectures, providing compatibility with different installation layouts without requiring additional mounting kits.

Cervoz also offers wide temperature versions for Ethernet Expansion Solutions, ensuring reliable performance between −40˚C and 85˚C, while the standard option operates between 0˚C to 70˚C. This flexibility further enhances the adaptability of Cervoz's solutions, making it adaptable to diverse and challenging industrial environments.


Choosing the Right M.2 Ethernet Solution

Upgrade to Cervoz's M.2 Ethernet solutions for precise embedded system connectivity management when optimizing network installations. They may feature Intel controllers and provide port configuration flexibility and temperature tolerance for demanding settings. Review Cervoz's M.2 Ethernet choices to guarantee power and performance compatibility.
